Square magnetic electro-permanent magnetic suction cups are specialized devices used for temporary attachment or holding of objects through the combined use of permanent magnets and electromagnets.
The term "electro-permanent magnetic" refers to a type of magnet that can be switched between on and off states using an electrical current. This characteristic makes it particularly useful for applications where the magnet's holding force needs to be controlled or released without the need for a continuous power supply.

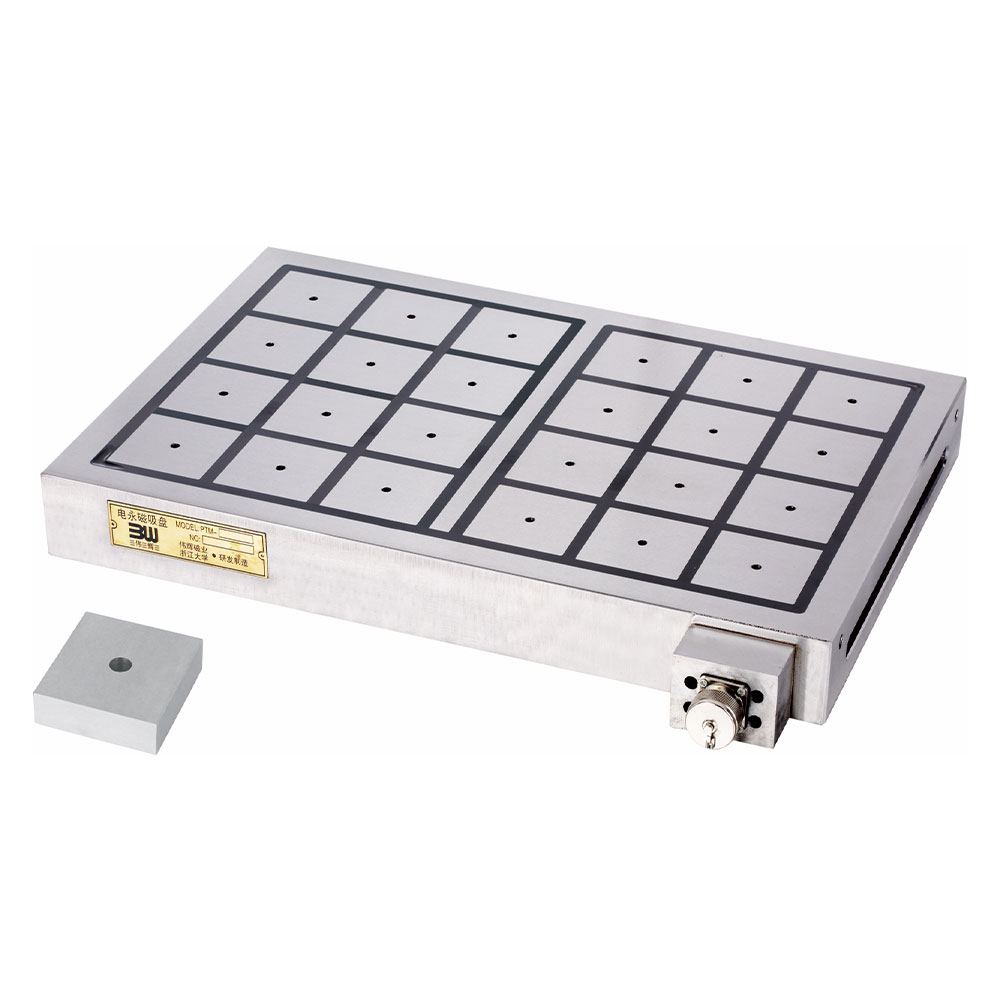

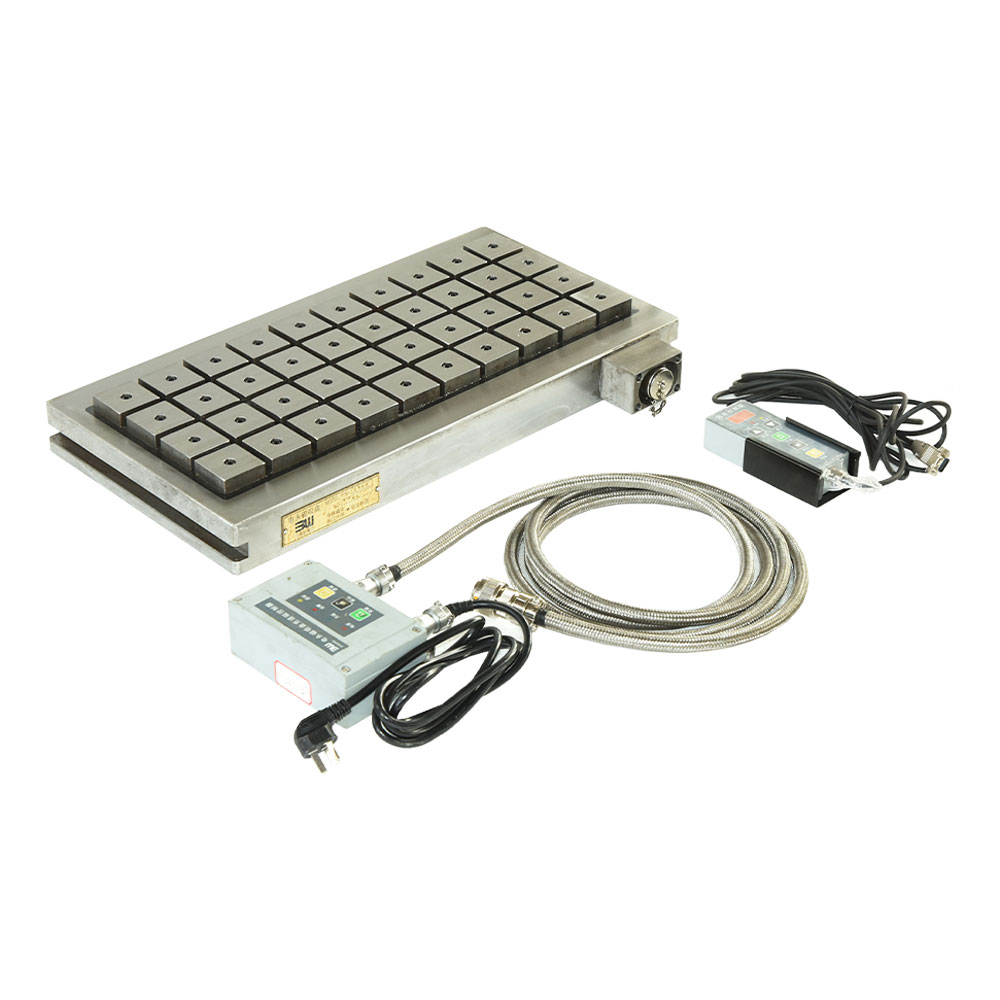

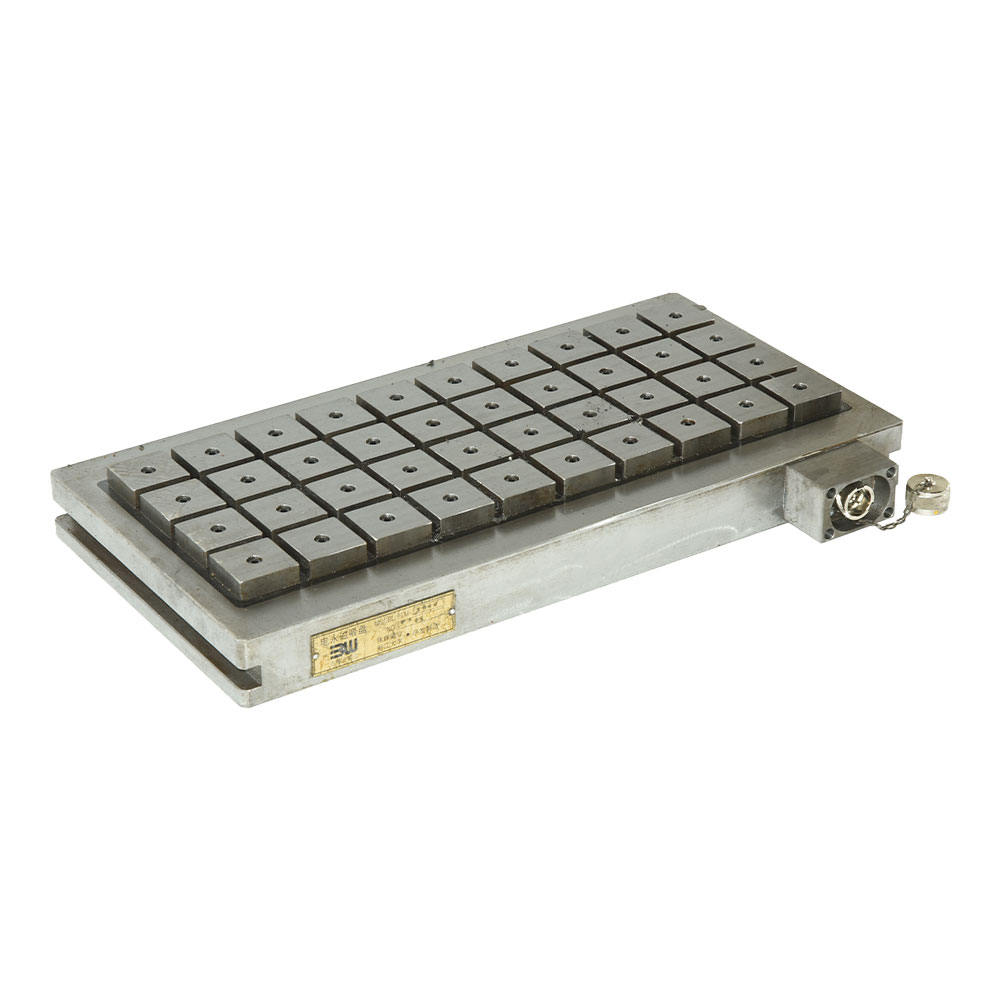

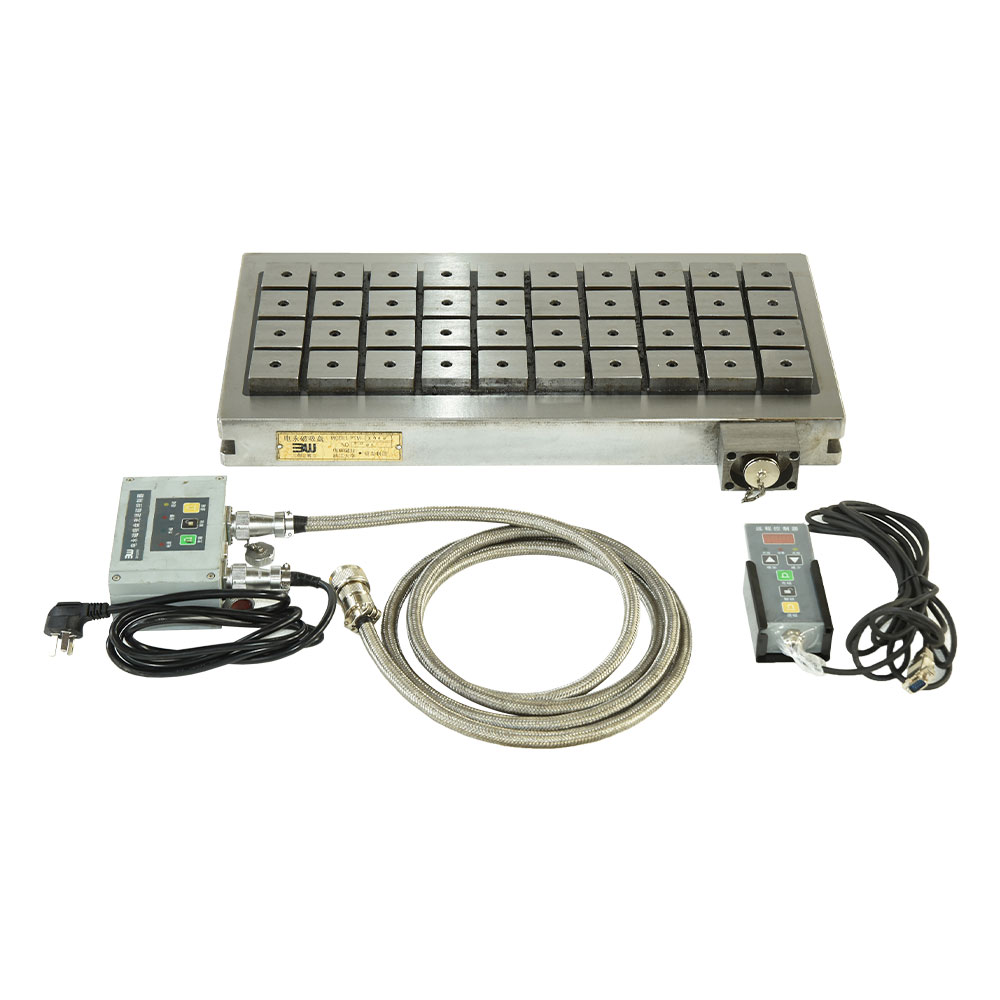

In the case of square magnetic electro-permanent magnetic suction cups, the device typically consists of a square-shaped base or housing that contains the magnet system. This system comprises both permanent magnets and electromagnets.
When the electromagnets are energized, they generate a magnetic field that enhances the holding force of the permanent magnets. This allows the suction cup to securely attach to a ferromagnetic surface, such as steel or iron.
The advantage of using electro-permanent magnetic suction cups is that they can provide a strong holding force when the electromagnets are powered, and maintain that force even after the power is turned off. This eliminates the need for a continuous power supply, as the suction cup can retain its attachment without consuming electricity.
These suction cups find applications in various industries, including manufacturing, material handling, robotics, and automation. They can be used for tasks such as lifting and holding metal sheets, positioning workpieces during machining operations, or securing objects during assembly processes.
It's important to note that while electro-permanent magnetic suction cups offer advantages in certain scenarios, their specific design, capabilities, and specifications may vary depending on the manufacturer and intended application.
The use of square magnetic electro-permanent magnetic suction cups can be influenced by several factors. Here are some key considerations:
1.Load Capacity: The load capacity of the suction cups is an important factor. It determines the maximum weight or force that the suction cup can hold. Square magnetic electro-permanent magnetic suction cups are designed to provide strong holding power, but the load capacity should be chosen based on the specific application requirements.
2.Surface Material: The type and condition of the surface material play a role in the effectiveness of the suction cups. Smooth and non-porous surfaces, such as glass or metal, generally work best with suction cups. Rough or uneven surfaces may affect the suction cup's ability to create a secure vacuum seal.
3.Surface Cleanliness: The cleanliness of the surface is crucial for achieving a strong suction. Any dirt, dust, or debris on the surface can hinder the suction cup's grip. It's important to ensure that the surface is clean and free from any contaminants that might compromise the suction.
4.Environmental Conditions: Environmental factors like temperature, humidity, and atmospheric pressure can affect the performance of suction cups. Extreme temperatures or high levels of humidity may impact the suction cup's ability to maintain a secure hold. It's essential to consider these factors and choose suction cups that are suitable for the specific environmental conditions.
5.Application Requirements: The specific application requirements will determine the appropriate suction cup design, size, and configuration. Different applications may require suction cups with varying dimensions, shapes, and features. Understanding the application needs will help in selecting the right type of square magnetic electro-permanent magnetic suction cups.

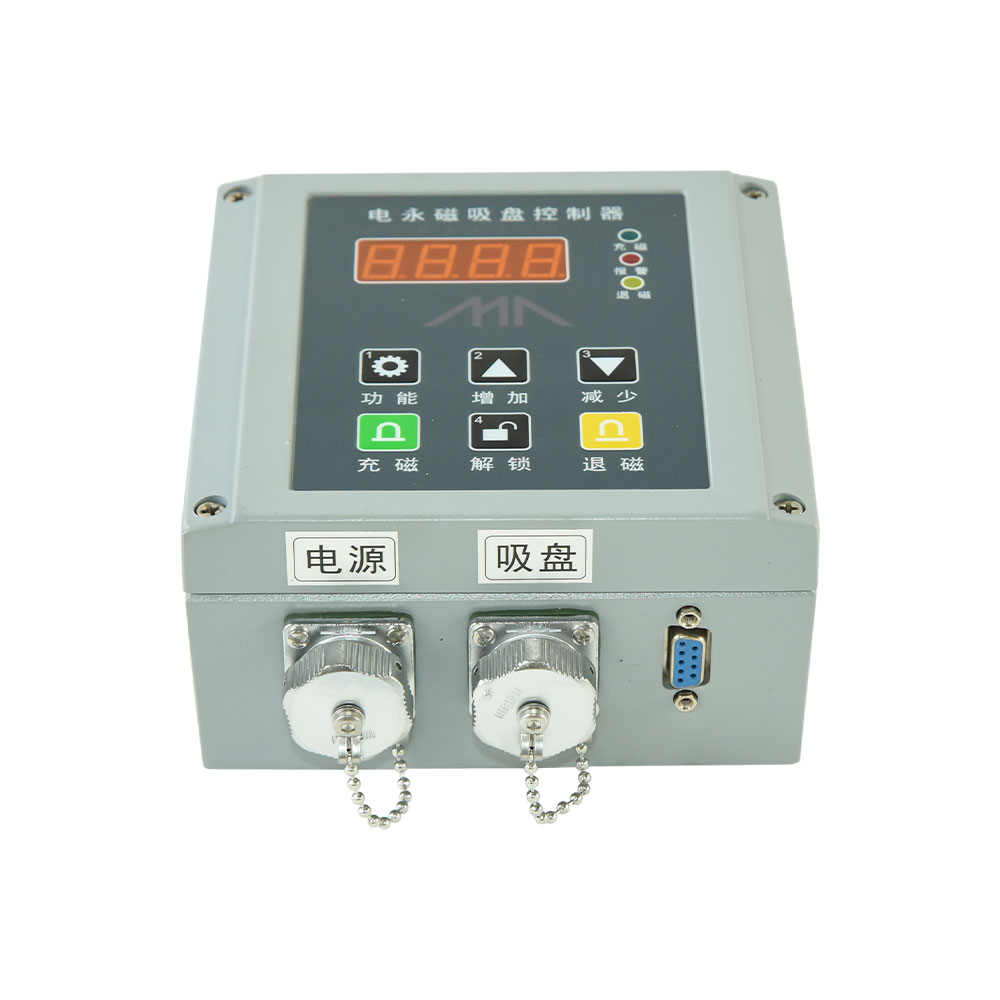

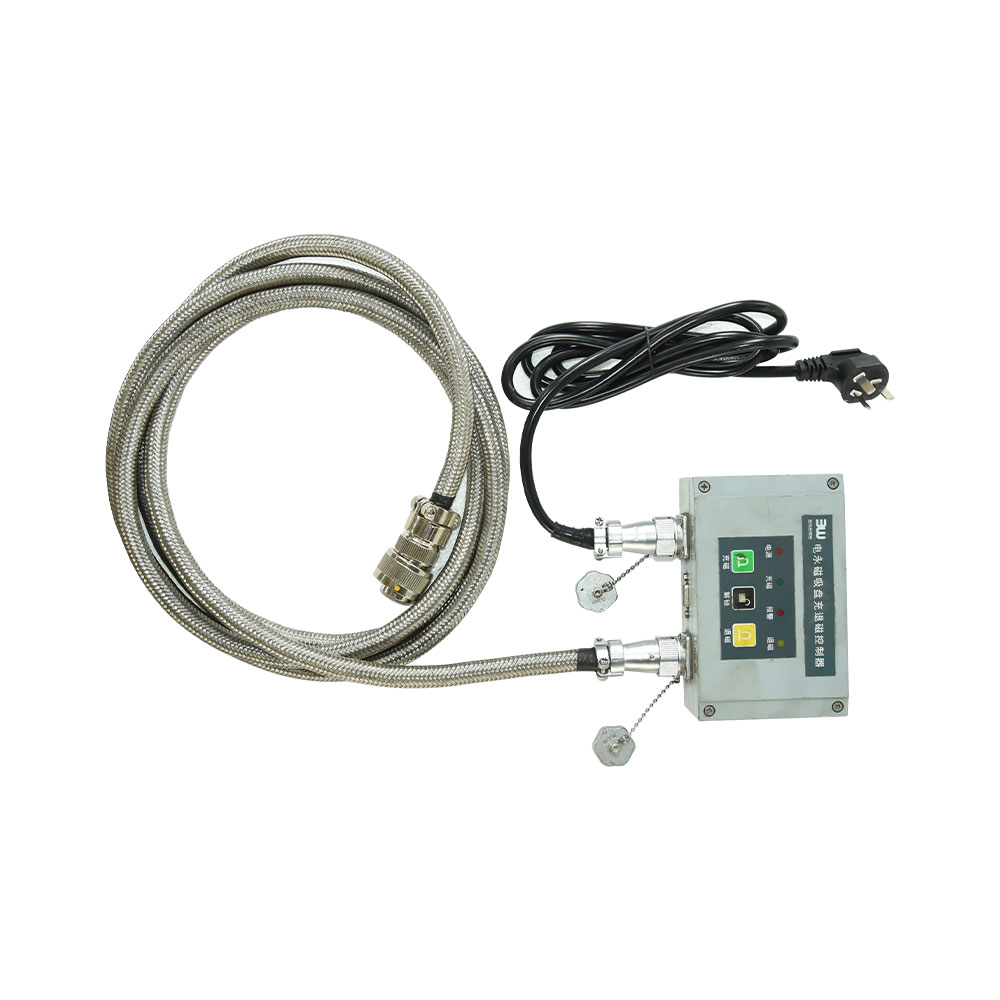

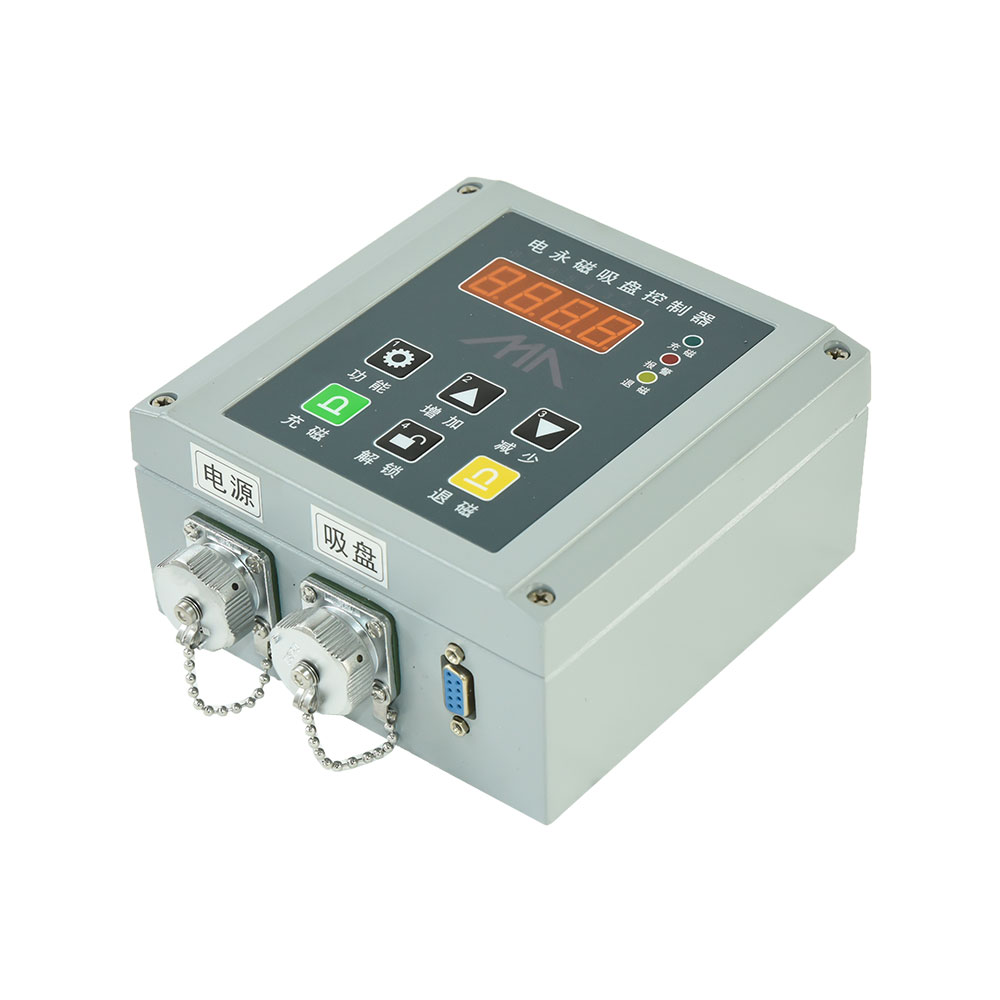

6.Power Supply and Control: Square magnetic electro-permanent magnetic suction cups require a power supply to operate. The availability of a suitable power source and the control mechanism for activating and deactivating the magnetic field are important factors to consider. It's necessary to ensure that the power supply and control system are compatible with the suction cups.
7.Safety Considerations: Safety is a critical factor when working with suction cups. Understanding the risks associated with using magnetic suction cups and implementing appropriate safety measures is essential. Adequate training, proper installation, and regular inspection of the suction cups are crucial for maintaining a safe working environment.
Remember, it's important to refer to the manufacturer's guidelines and recommendations specific to the square magnetic electro-permanent magnetic suction cups you are using, as they may have additional factors and considerations for their optimal use.
