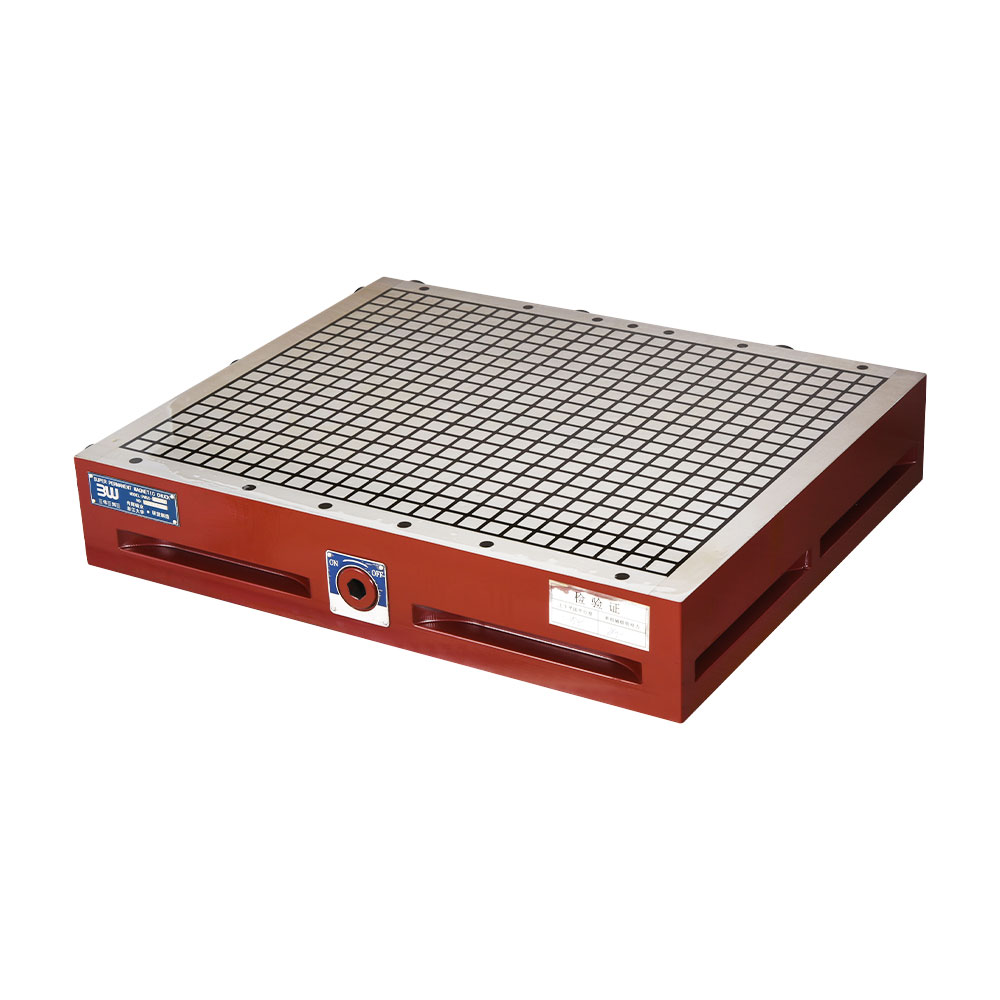

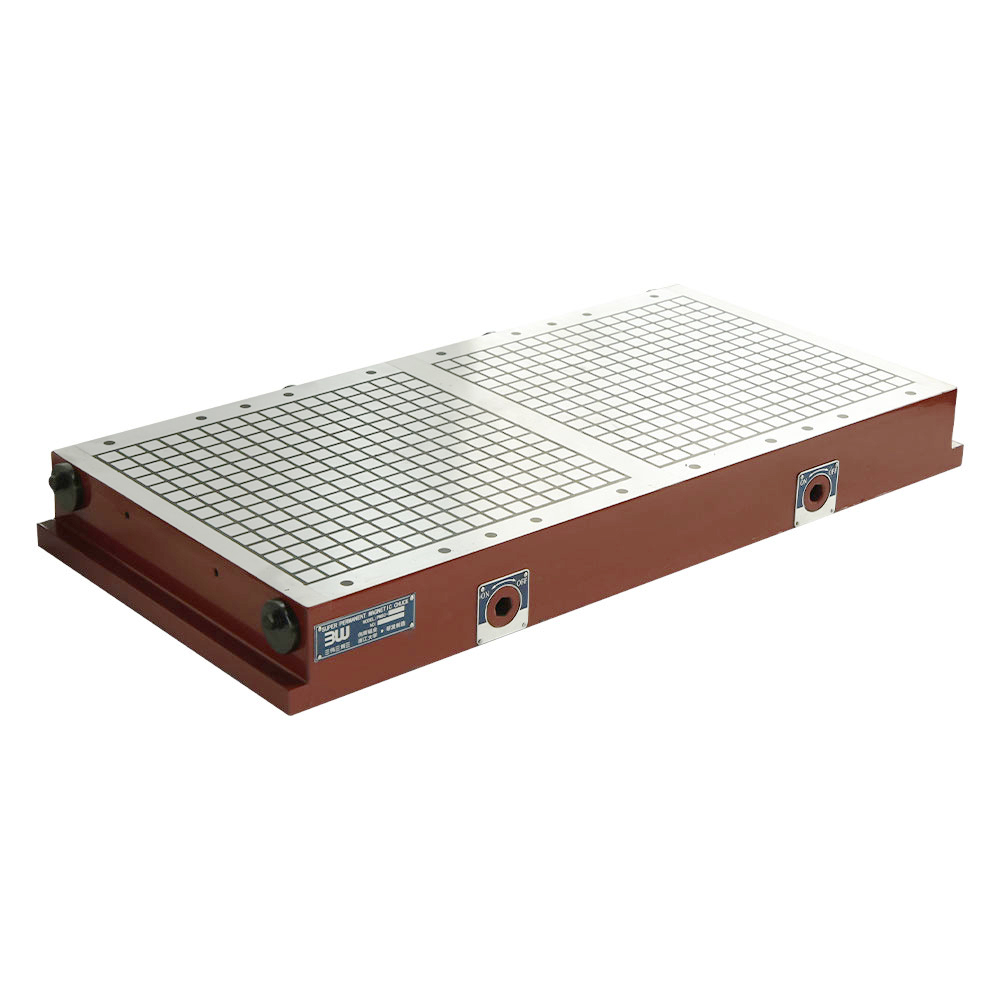

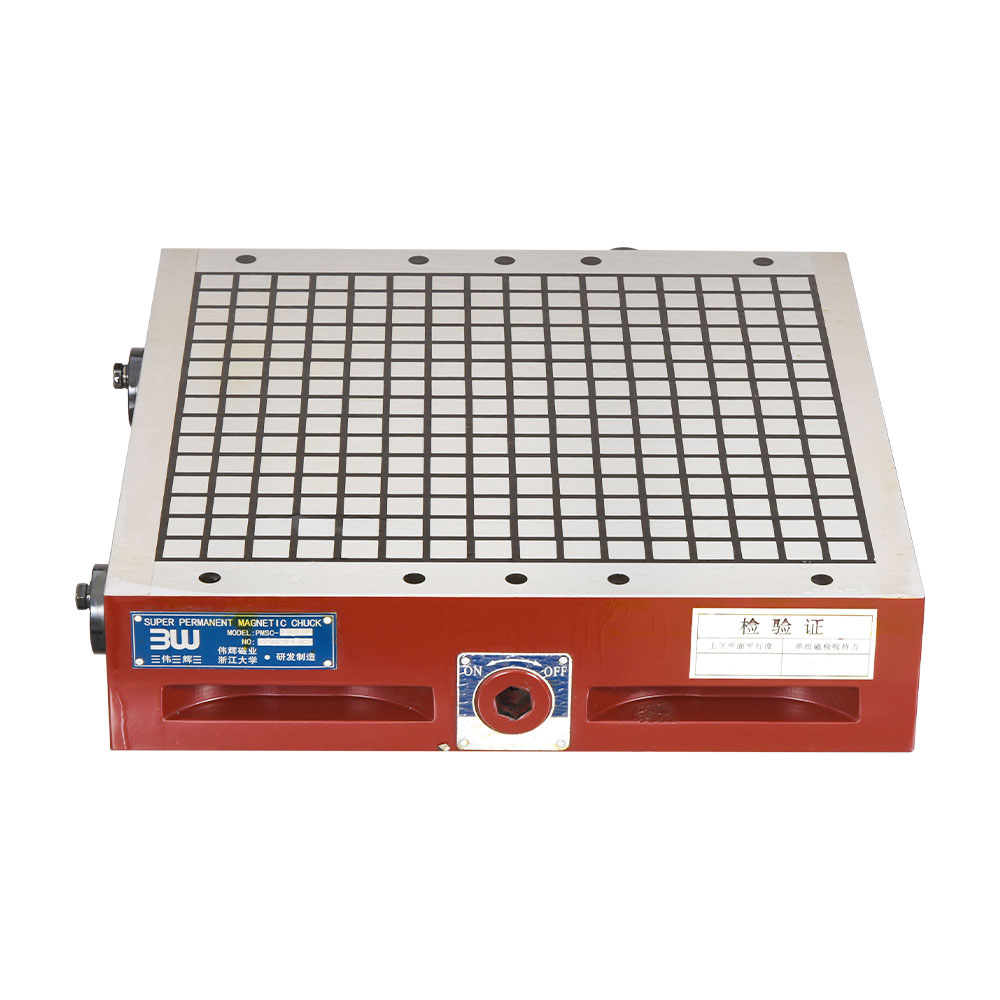

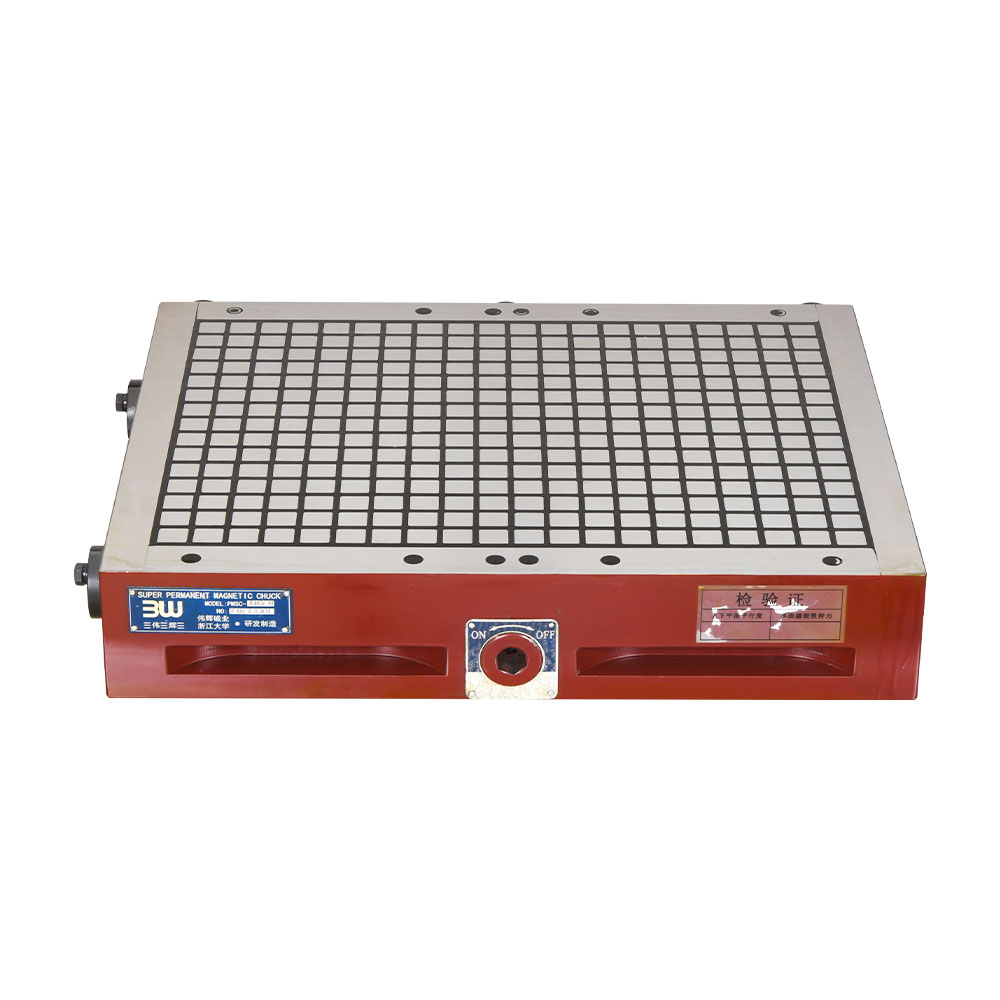

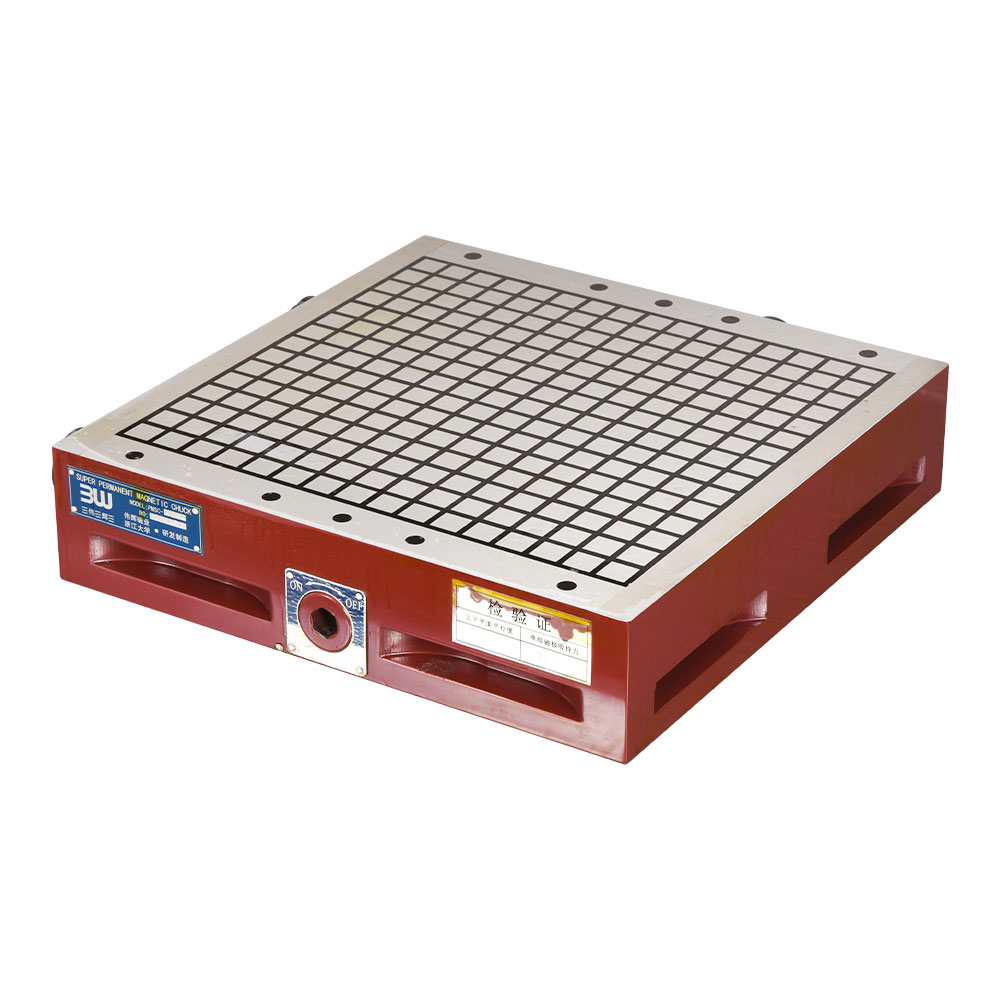

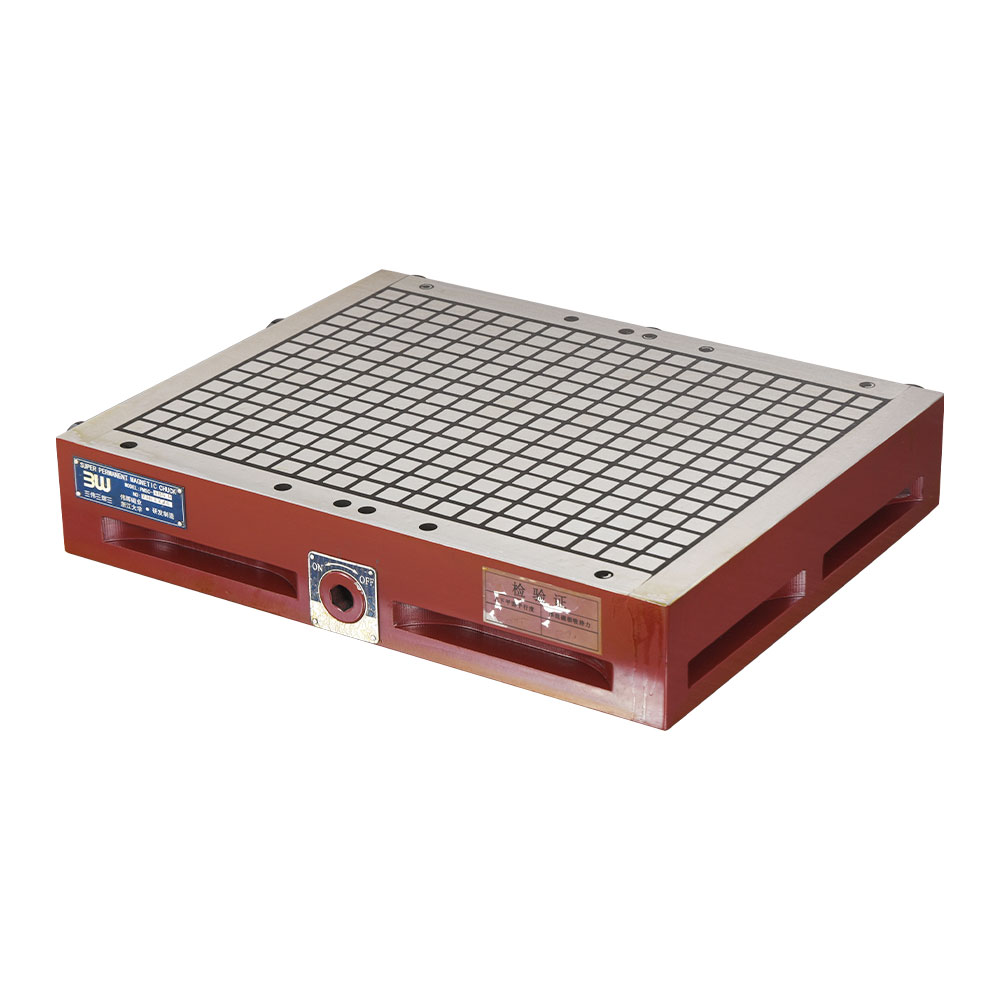

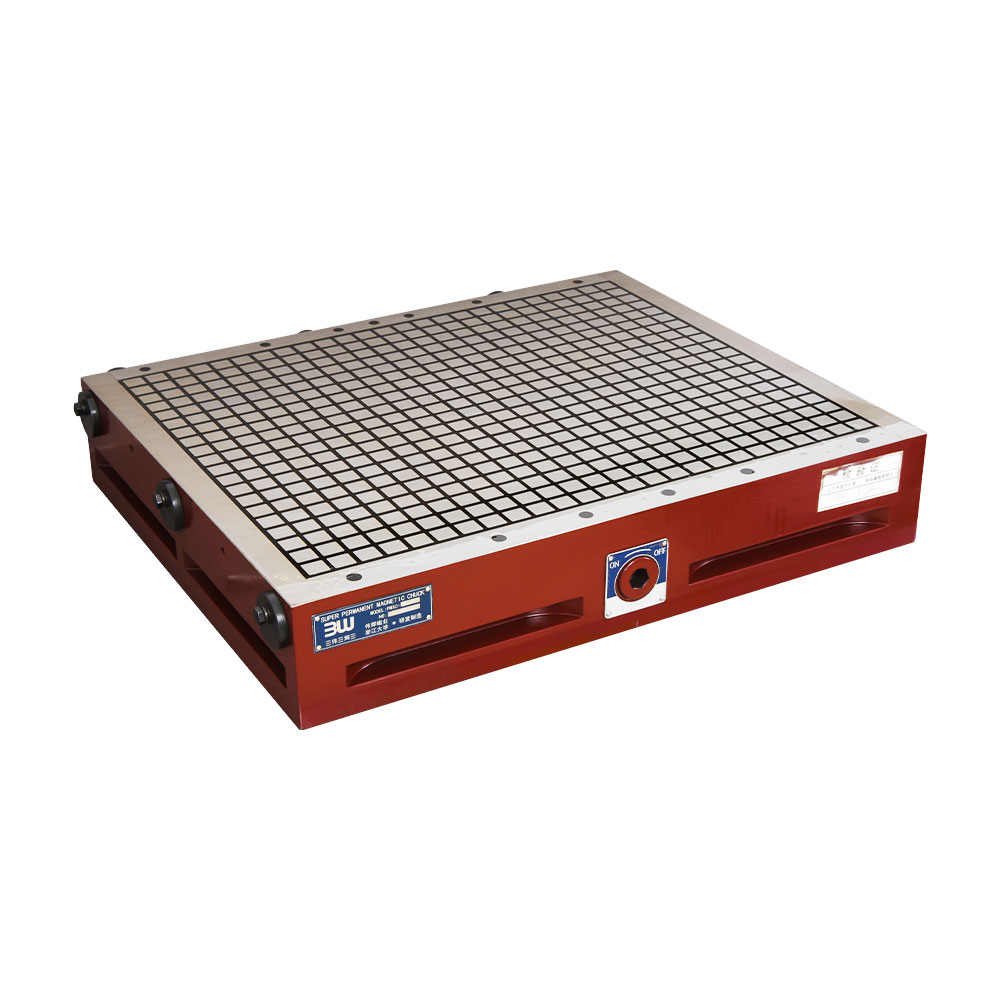

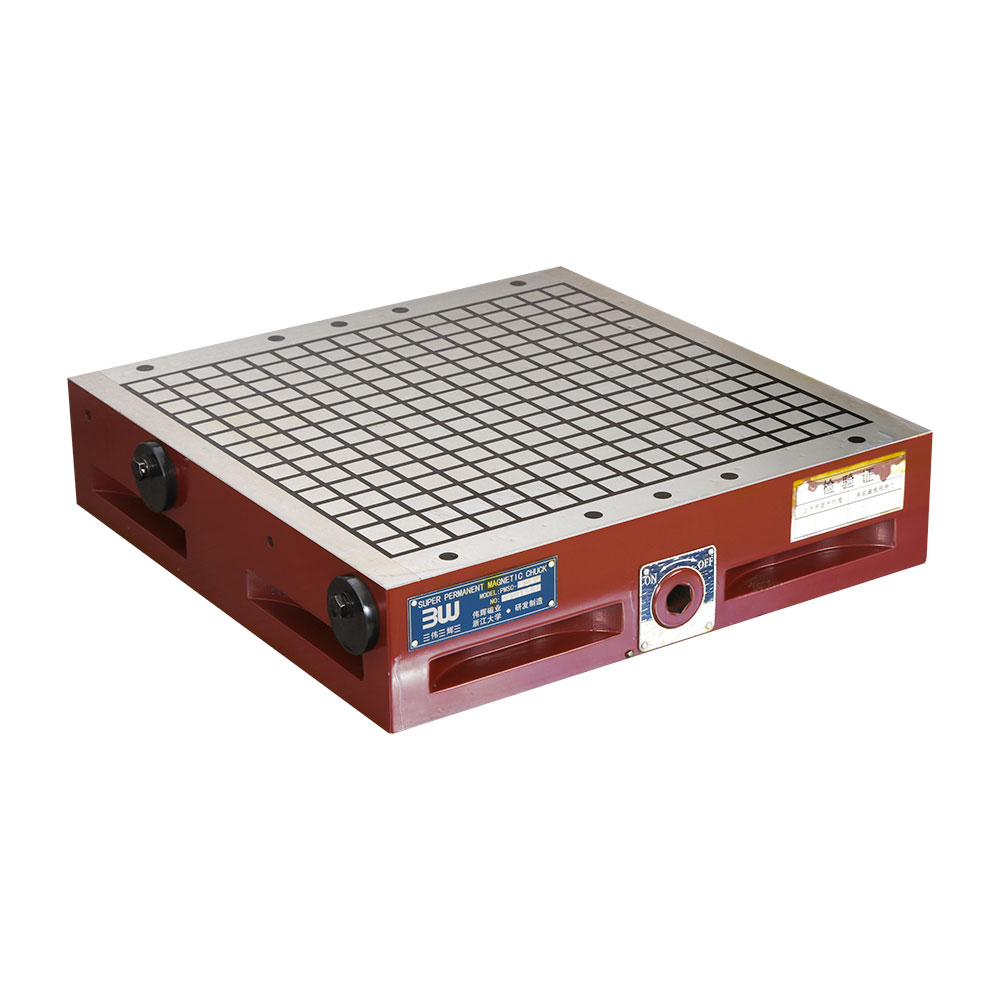

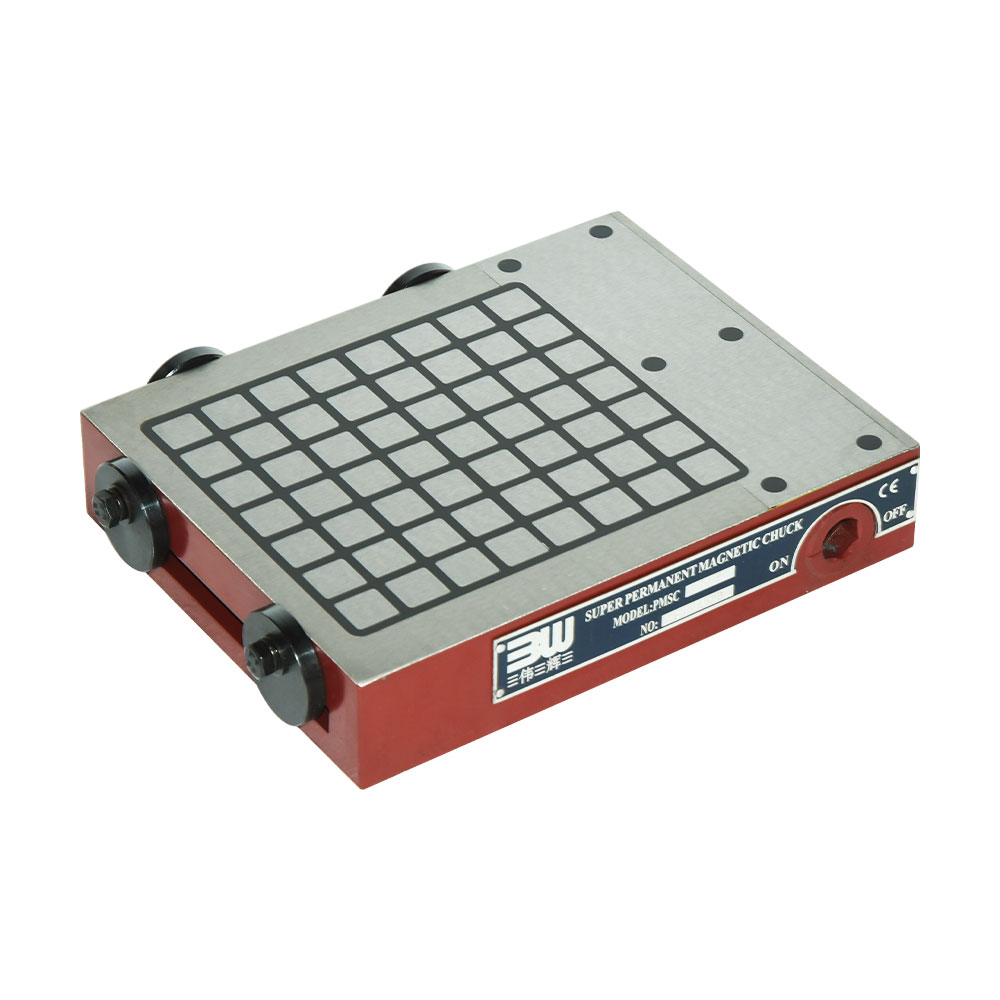

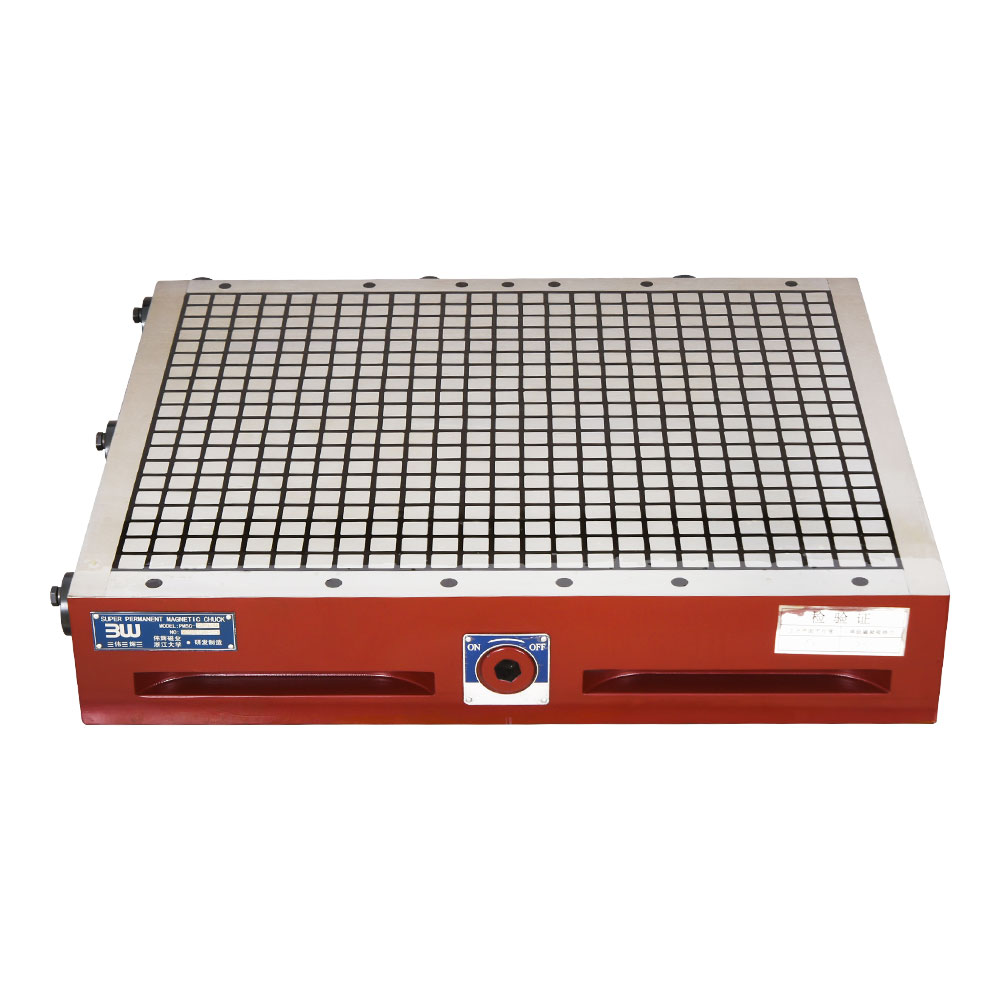

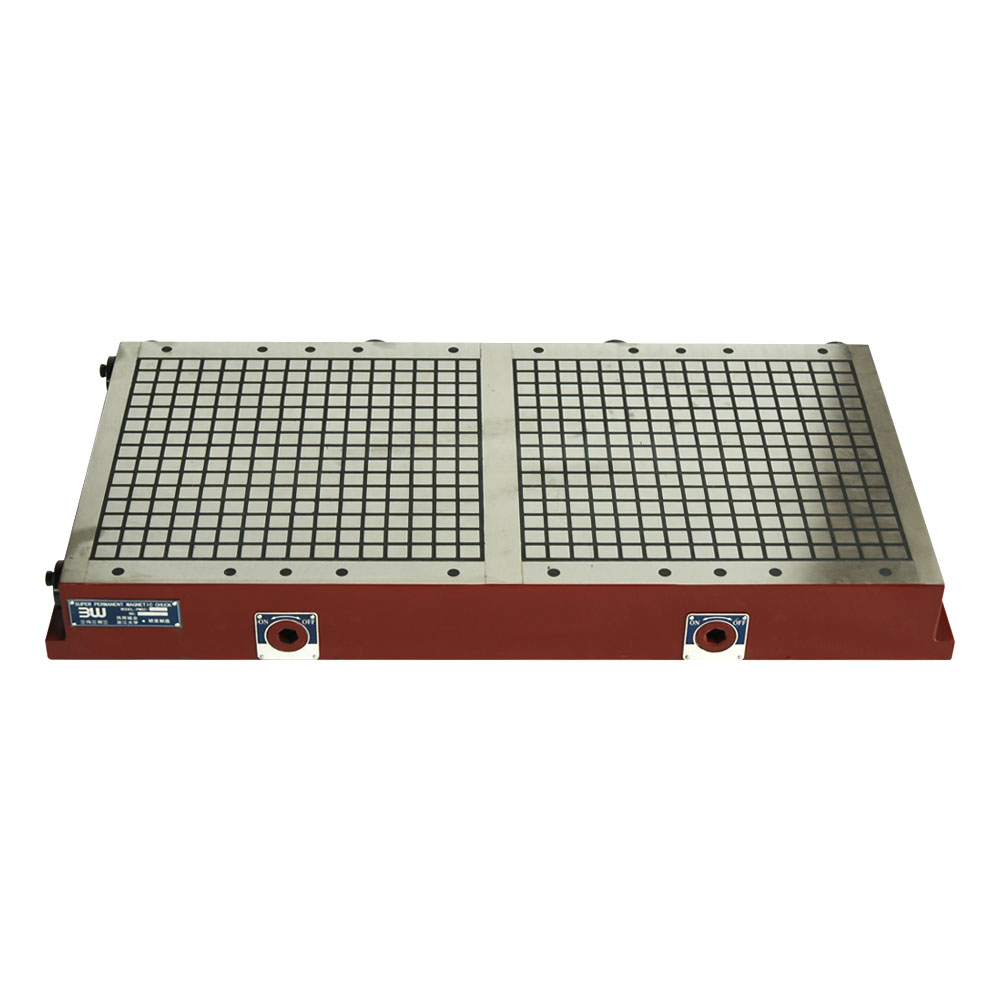

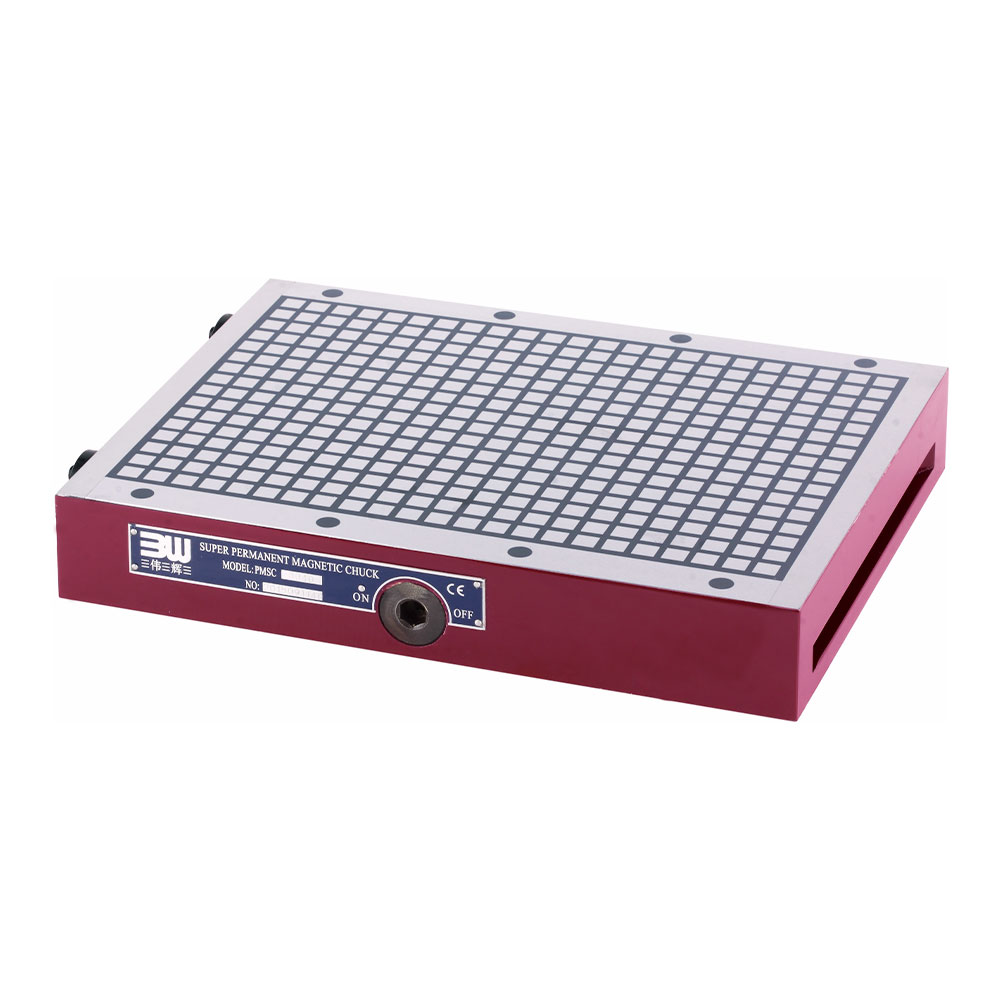

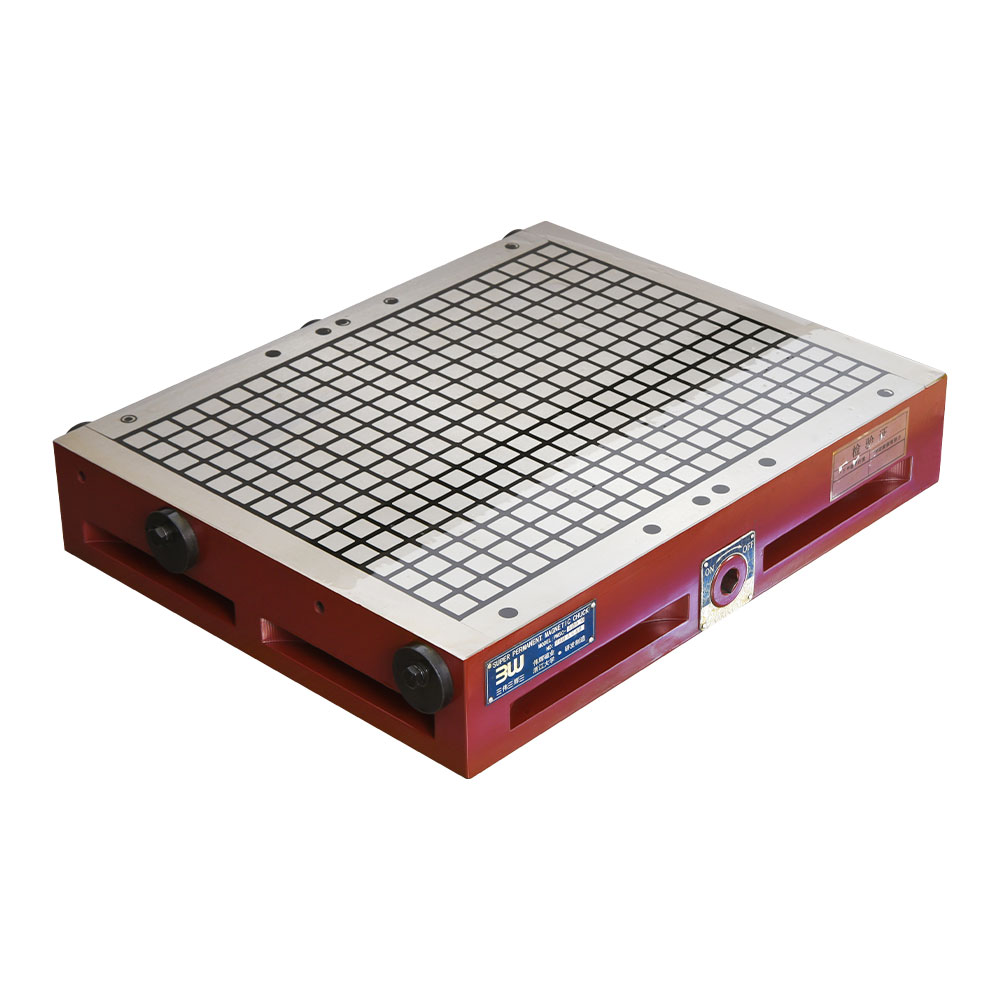

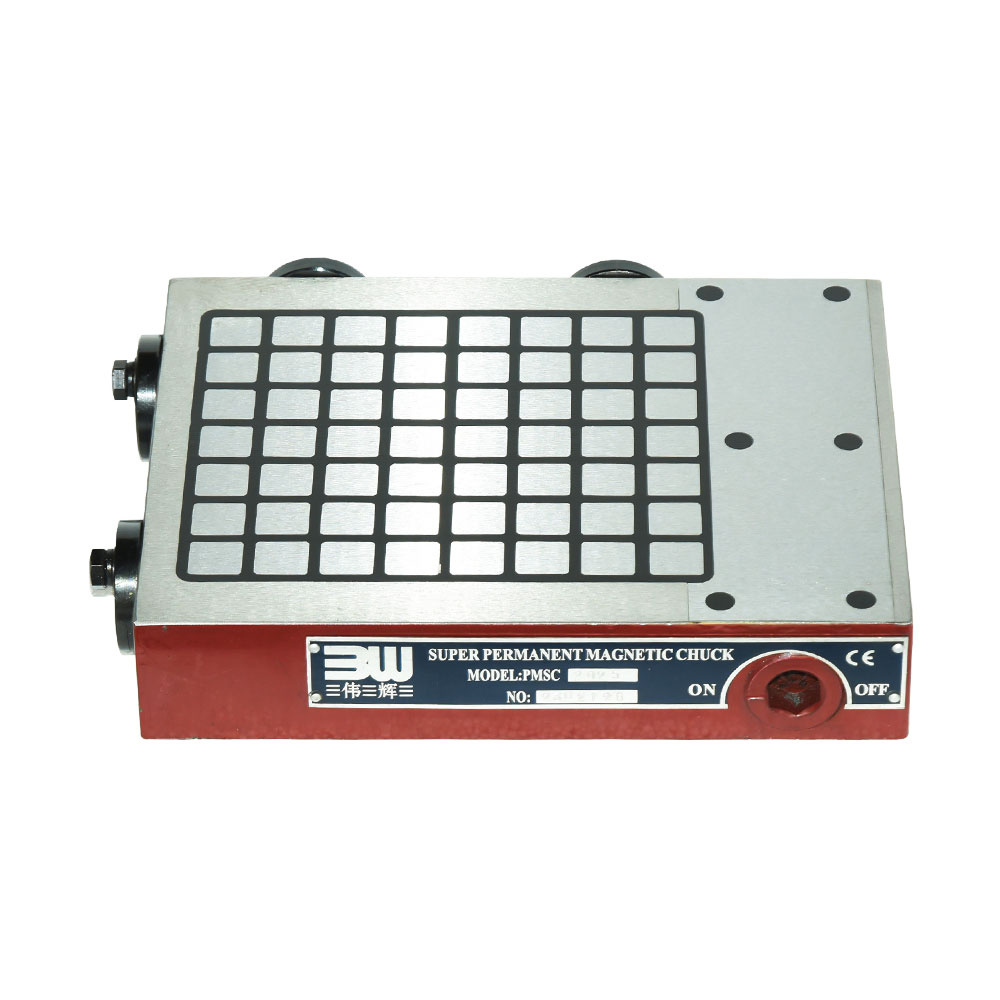

Super Permanent Magnetic Chucks Wholesale

Home / Product / PMSC Super permanent magnetic chuck

Product Categories

Recommended Products

Super Permanent Magnetic Chucks Manufacturers

Ningbo WeiHui Magnetic Industry Co., Ltd. was founded in 1998, covering an area of 12,000 square meters, located in the beautiful coastal city - one of the "four major fishing ports" in Ningbo Xiangshan Shipu Port.
It is suitable for metal cutting processing and is commonly used in CNC machining centers, CNC carving, and milling machines, grinding machines, and other mechanical processing equipment.

Features
The magnetic force is generated by high-performance materials, with no time limit, no energy consumption, no heat generation, environmental protection and safety, and simple and practical operation.
Super strong suction force and magnetic force can be superimposed and increased according to the increase of the contact area of the workpiece and can be used for powerful milling and drilling.
The super strong permanent suction cup panel is rigid and stable and does not heat up and produce deformation during use, allowing for precision machining.
A simple mechanical switch, with no power supply, is required, avoiding the risk of the workpiece falling off due to the sudden loss of power and the disappearance of the magnetic force.
Easy and quick change of clamping workpiece, shortening the workpiece clamping and adjustment time, realizing five-sided machining and significantly increasing the working efficiency by 80%.

Specification type (12*12)
Specifications Size（mm） Magnetic block Magnetic force block (kg f) Total suction (kg c)
A B H
PMSC-2025B 200 256 50 56 25 1400
PMSC-2525A 253 252 90 90 25 2250
PMSC-2040A 200 400 80 136 25 3400
PMSC-3030A 300 300 90 132 25 3300
PMSC-3040A 300 400 90 176 25 4400
PMSC-3040B 293 376 60 132 25 3300
PMSC-3050 300 500 90 220 25 5500
PMSC-30100A 300 1000 90 352 25 8800
PMSC-3060A 300 600 90 275 25 6875
PMSC-3535A 350 350 90 183 25 4575
PMSC-4040A 400 400 90 240 25 6000
PMSC-4050A 400 500 90 300 25 7500
PMSC-4060A 400 600 90 375 25 9375
PMSC-4080A 400 800 90 480 25 12000
PMSC-5050A 500 500 110 400 25 10000
PMSC-5060A 500 600 110 500 25 12500
PMSC-5080A 500 800 110 640 25 16000
PMSC-50100A 500 1000 110 800 25 20000
PMSC-6080A 600 800 110 768 25 19200
PMSC-1530C 150 300 55 116 15 1740
PMSC-1540C 150 400 55 184 15 2760
PMSC-2040C 200 400 65 207 15 3105
PMSC-3040C 300 400 65 368 15 5520

Precautions and methods in the use of the Ultra Disk
1, the workpiece should be placed as much as possible to occupy the magnetic pole, in order to get a greater attraction, and do not align the magnetic pole;

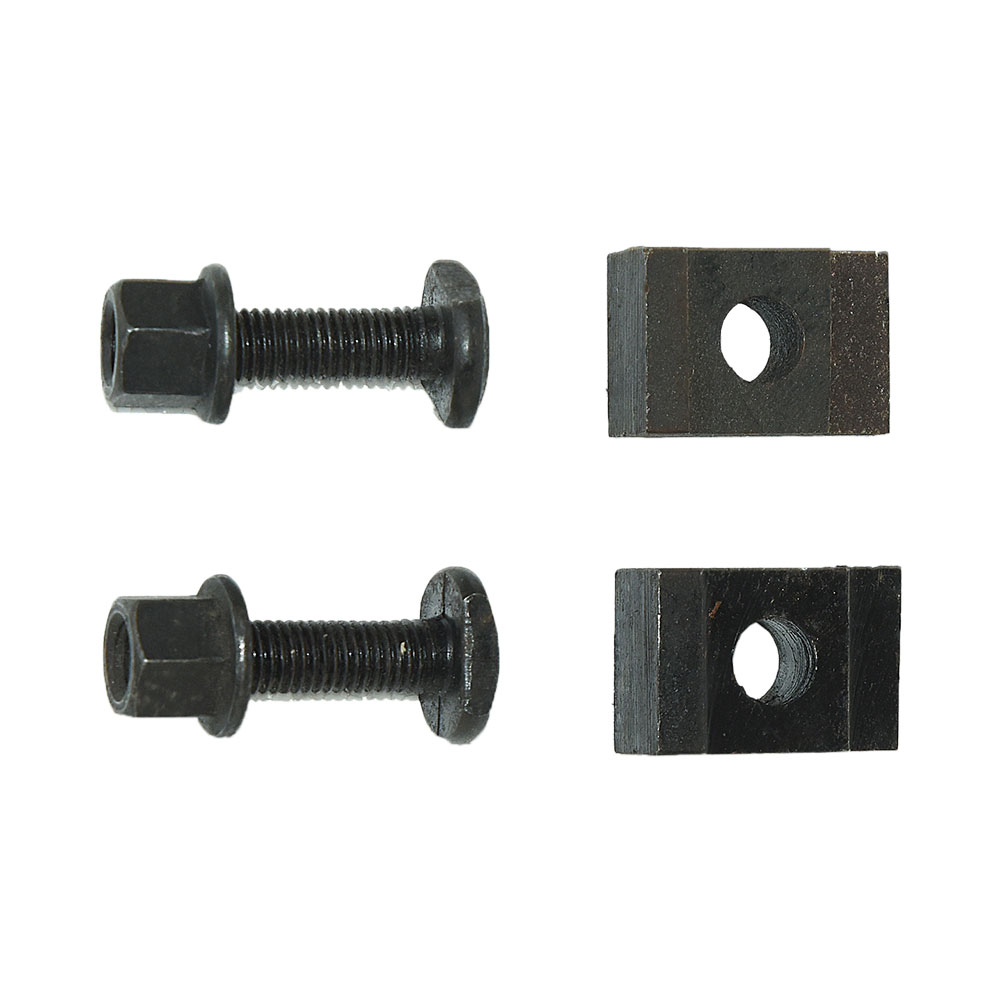

2, the super suction cup is a set of magnetic clamping tools, it is composed of the magnetic suction cup body and other optional accessories, should use the accessories as much as possible, in order to achieve precise and fast clamping for more workpiece should appropriate choice of auxiliary gear block;
3、For large and irregularly shaped workpieces on the bottom surface, multiple suction cups can be used in combination to complete clamping;
4, for large and flat bottom workpieces, can choose the auxiliary block pad high to complete clamping;
5、For horizontal milling or drilling machine, it can be used with tripod side suction cups to complete clamping from the face;
6、For smaller workpieces, multiple workpieces can be clamped at one time to achieve the purpose of improving work efficiency (because the workpiece is too small, please choose the auxiliary block for the outermost workpiece);
7、In order to ensure the parallelism between the plane of the suction cup and the working platform surface of the machine tool, after the suction cup is installed in place, the user should carry out fine milling on the working surface of the suction cup.

Disk comparison
Compare contents Super Disk Ordinary disks
Suction power Super suction, super suction, superimposable magnetic force, increases according to the contact area of the workpiece and can be used for powerful milling. Weak suction force, magnetic force cannot be superimposed, does not increase according to the contact area of the workpiece, usually used in grinding and electro-machining machines.
Precision The panels are very rigid and stable and do not deform during use, allowing for precision machining. Poor steel and stability of the panel, easily deformed during use, especially in large areas.
Uniform and constant magnetic force can be predicted Unique rectangular technology, a constant magnetic force for different shapes, sizes, quantities, and positions of the suction cups. The magnetic force varies irregularly according to shape, size, quantity, and position.
The direction of the force on the workpiece Four horizontal directions are available for machining in the horizontal XY direction, suitable for milling. Horizontal in both directions, suitable for single-direction machining only.
Magnetic circuit construction The magnetic poles are in a long square, the beam penetrates evenly into the bottom of the workpiece, it is shallow and dense, usually the part above 1cm does not show magnetism. Large variations in the magnetic beam may make the process magnetic, thus affecting machining accuracy or magnetizing the tool and machine spindle.
About Us

Ningbo WeiHui Magnetic Industry Co.,Ltd.

Ningbo WeiHui Magnetic Industry Co., Ltd is China Super Permanent Magnetic Chucks Manufacturers and Super Permanent Magnetic Chucks factory. Company has always been to technological innovation as the guide, with many domestic famous universities and technicacooperation and talent cultivation, after many years of hard work has formed a kind of enterprise culture of "pragmatic and realistic, the pursuit of perfect, now has a strong technical force, excellent management team. Company alway., adhere to market-oriented, with "science and technology, quality refinement, the good faith is gold" is the management idea, "first-class enterprise.High quality products, reasonable price" is our promise.
YASSION

Honor

  • Partners
  • Corporate Technology Breakthrough Award
  • Advanced Member Unit
  • Advanced enterprises
  • Certificate of merit
  • Ningbo Mould Industry Association
  • Technology-based Micro and Small Incubatees
  • Quality management system certificate
  • Certificate
  • Utility model patent certificate
  • Invention patent certificate

Leave a message

News

Read Our Journal

Industry Knowledge Development

A permanent magnetic chuck is a device used in machining operations, particularly in metalworking, for holding ferromagnetic workpieces securely in place during machining operations. These chucks use permanent magnets to generate a magnetic field that holds the workpiece.

Here are some general performance characteristics that are desirable in a permanent magnetic chuck:
Holding Force: The holding force of a magnetic chuck refers to its ability to securely hold the workpiece in place during machining. Higher holding force ensures stability and prevents movement or vibration of the workpiece.
Uniform Magnetic Field: A uniform magnetic field across the entire surface of the chuck is crucial for consistent holding power. It ensures that the magnetic force is evenly distributed, which helps in maintaining accuracy and preventing distortion during machining.
Magnetic Flux Density: Magnetic flux density determines the strength of the magnetic field generated by the chuck. Higher flux density translates to a stronger holding force and improved stability.
Magnetic Field Control: Some magnetic chucks offer the ability to control the magnetic field strength. This feature allows the operator to adjust the holding force according to the specific requirements of the machining operation.
Rigidity and Durability: A reliable magnetic chuck should be rigid and durable to withstand the forces and stresses encountered during machining. It should be resistant to wear and deformation to ensure consistent performance over time.
Easy Operation: An effective magnetic chuck should be user-friendly, allowing for easy and efficient setup and removal of workpieces. Quick and secure clamping mechanisms can enhance productivity and save time.

The PMSC Super permanent magnetic chuck offers several advantages over traditional magnetic chucks. Here are some of the key advantages:
Strong magnetic force: The PMSC Super permanent magnetic chuck generates a strong magnetic force, ensuring secure and reliable holding of workpieces. It can effectively hold ferromagnetic materials with high precision, stability, and rigidity.
Permanent magnetic properties: Unlike electromagnetic chucks that require continuous power supply, the PMSC Super permanent magnetic chuck is magnetized permanently and does not rely on external power. This eliminates the risk of power failure or fluctuations affecting the workholding, resulting in increased operational safety and reduced downtime.
Energy efficiency: As the PMSC Super permanent magnetic chuck does not require electrical power during operation, it offers significant energy savings compared to electromagnetic chucks. It helps reduce power consumption and contributes to a more sustainable and cost-effective manufacturing process.
Uniform magnetic field distribution: The Super permanent magnetic chuck is designed to provide a uniform magnetic field across the entire surface, ensuring even clamping force and distribution of magnetic flux. This uniformity helps maintain consistent holding power and improves the accuracy and stability of machining operations.
Low maintenance: The PMSC Super permanent magnetic chuck has no moving parts or electrical components, making it virtually maintenance-free. There are no coils, cables, or control systems to maintain or repair, reducing the need for servicing and minimizing overall maintenance costs.
Versatility: The Super permanent magnetic chuck is compatible with various machining processes, including milling, grinding, turning, and EDM (electrical discharge machining). It can securely hold a wide range of workpiece sizes, shapes, and weights, making it suitable for diverse industrial applications.
Easy operation: The magnetic force of the PMSC Super permanent magnetic chuck can be quickly activated or deactivated by a simple lever or switch, enabling fast and efficient workpiece loading and unloading. This ease of operation enhances productivity and saves time during setup and changeovers.
High temperature resistance: The PMSC Super permanent magnetic chuck exhibits excellent thermal stability, allowing it to withstand high operating temperatures without a significant loss of magnetic force. This feature is particularly advantageous in applications that involve high-speed machining or thermal processes.

Overall, the PMSC Super permanent magnetic chuck offers superior holding power, energy efficiency, ease of use, and low maintenance requirements, making it a valuable tool in precision machining and manufacturing operations.
