Magnetic base Manufacturers

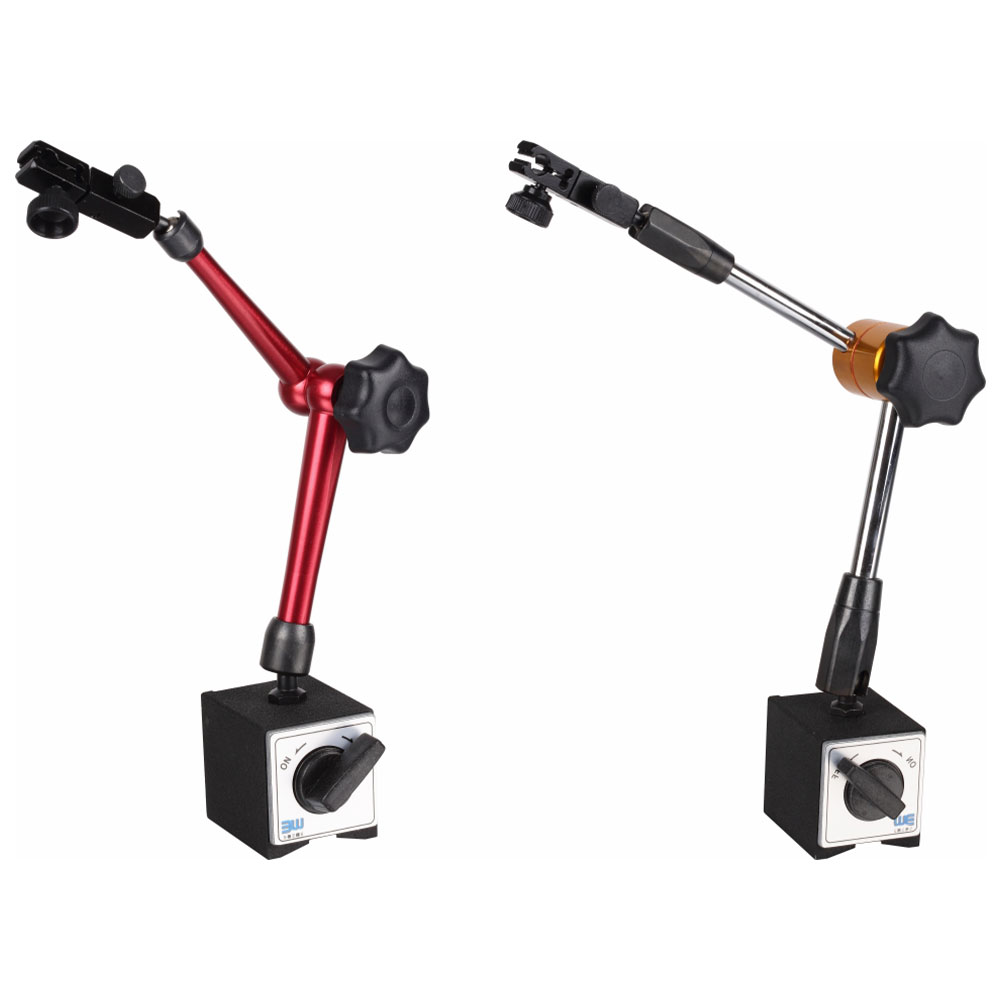

Magnetic watch holders are commonly used industrial devices, usually consisting of a magnetic base and an adjustable metal arm. The magnetic base is usually made of a strong permanent magnet that can be attached to any smooth metal surface, a mechanical universal arm with a central locking mechanism, all three live sections fixed by a swivel handle, a continuously adjustable clamping force for high stability, a fine adjustment device at the gauge clamping point for easy adjustment of the positioning, and not only a gauge clamping hole but also a dovetail slot at the top for holding a wide range of gauges.

Magnetic gauge holders are often used for measuring and positioning, for example during machining processes, where they are attached to the surface of a workpiece for precise measurement and machining. They can also be used for assembly and adjustment, for example during assembly, by attaching them to the workpiece for adjustment and alignment.

Model

Holding  Power

Base

Arm length(L)

Clamp Hole Dia Φ

Weight

YW-8CU

80 kgf

60x50x55

385

8

1.8kg

YW-8C

80 kgf

60x50x55

325

8

1.8kg

YW-8A

80 kgf

60x50x55

315

6.0/8.0

1.8kg

WCE-D Collection

80 kgf

60x50x55

290

8

1.4kg

WCE-A Collection

80 kgf

60x50x55

345

8

1.6kg

About Us

Ningbo WeiHui Magnetic Industry Co.,Ltd.

Ningbo WeiHui Magnetic Industry Co., Ltd is China Magnetic base Manufacturers and Magnetic base factory. Company has always been to technological innovation as the guide, with many domestic famous universities and technicacooperation and talent cultivation, after many years of hard work has formed a kind of enterprise culture of "pragmatic and realistic, the pursuit of perfect, now has a strong technical force, excellent management team. Company alway., adhere to market-oriented, with "science and technology, quality refinement, the good faith is gold" is the management idea, "first-class enterprise.High quality products, reasonable price" is our promise.
YASSION

Honor

  • Partners
  • Corporate Technology Breakthrough Award
  • Advanced Member Unit
  • Advanced enterprises
  • Certificate of merit
  • Ningbo Mould Industry Association
  • Technology-based Micro and Small Incubatees
  • Quality management system certificate
  • Certificate
  • Utility model patent certificate
  • Invention patent certificate

Leave a message

News

Read Our Journal

Industry Knowledge Development

A magnetic base is a device or component that has a magnet embedded within it, providing a strong magnetic field. It is typically used to hold or secure objects in place, particularly in industrial or mechanical applications. The magnetic base is often combined with other tools or equipment to enhance their functionality.

One common use of a magnetic base is in combination with a flexible arm or gooseneck, creating a magnetic base with an adjustable arm. This configuration is commonly found in industries such as machining, welding, and inspection, where a work light or measuring instrument needs to be securely positioned.

Magnetic bases are designed to attach to ferromagnetic surfaces, such as iron or steel. The magnet within the base creates a strong attraction to the metal surface, effectively holding the base and any attached objects in place. The strength of the magnetic field can vary depending on the size and type of the magnet used.

Magnetic bases are often used in applications such as:
1.Holding workpieces or components during machining or assembly processes.
2.Mounting lights or cameras in industrial or automotive settings.
3.Attaching dial indicators, test indicators, or other measuring instruments for precise measurements.
4.Securing temporary signage or displays.

It is worth noting that while magnetic bases are convenient and provide a strong hold, they may not be suitable for all applications. Some factors to consider include the weight and stability of the object being supported, the working environment (e.g., presence of vibrations), and any safety considerations.

Magnetic bases are devices that use magnets to securely hold objects in place. They are commonly used in various applications, including machining, welding, inspection, and assembly work. There are several types of magnetic bases available, each designed for specific purposes. Here are some common types:
1.Standard Magnetic Base: This is the most basic type of magnetic base. It consists of a magnet mounted on a flexible arm or a rigid base. It is used for holding small tools, dial indicators, or other lightweight objects in place.
2.Heavy-Duty Magnetic Base: These bases are designed to provide stronger magnetic holding force. They are typically larger and more robust, capable of securely holding heavier tools, equipment, or workpieces.
3.On/Off Magnetic Base: This type of magnetic base features a switch or lever mechanism that allows you to control the magnet's magnetic field. When switched on, the base becomes magnetized and holds objects firmly. When switched off, the magnetic force is deactivated, allowing for easy release of the held objects.
4.Fine Adjustment Magnetic Base: These bases come with additional mechanisms for precise positioning. They often include micrometer-like adjustment knobs or levers that enable fine-tuning of the position of the held object.
5.Universal Magnetic Base: Universal magnetic bases provide greater flexibility in terms of mounting options. They often feature multiple mounting holes, articulated arms, or swivel joints, allowing for a wide range of positioning angles and orientations.
6.V-Block Magnetic Base: V-block magnetic bases have a V-shaped groove or channel that securely holds cylindrical or round objects in place. They are commonly used in machining or inspection tasks where rotational stability is required.
7.Magnetic Base with Switchable Poles: These bases have magnets with switchable poles, typically north and south. By toggling the pole orientation, they can be used to attract or repel ferromagnetic objects, providing additional versatility in holding and positioning.
