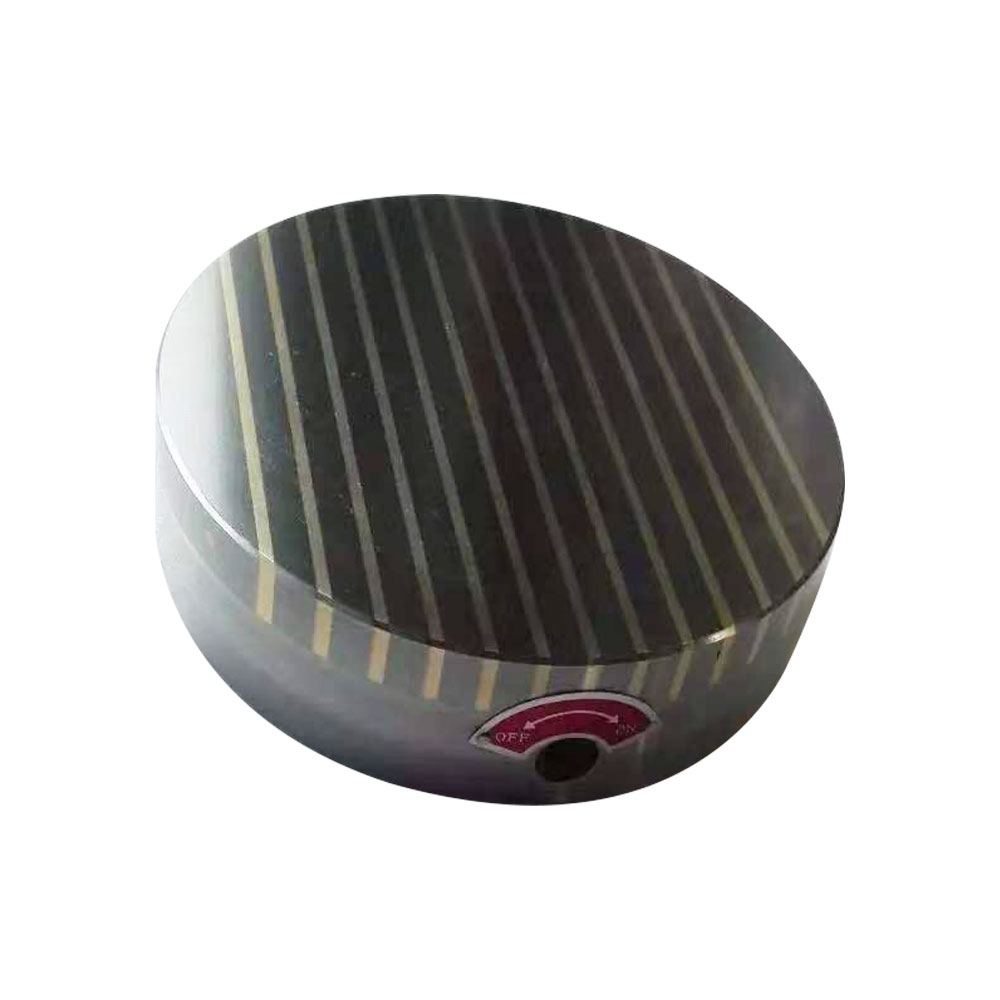

A PMCC, or Permanent Magnetic Chuck, is a device used in machining and metalworking processes to hold ferrous workpieces securely in place during operations. It is a type of magnetic chuck that utilizes permanent magnets to create a strong magnetic field, which effectively clamps the workpiece onto the chuck surface.

The primary advantage of a PMCC is its ability to securely hold the workpiece without the need for any external power source or continuous electrical supply. This feature makes it highly reliable and convenient for various applications. Additionally, PMCCs offer uniform clamping force across the entire workpiece, ensuring stability during machining operations.

The magnetic field in a PMCC is created by a series of permanent magnets arranged in a specific pattern within the chuck. The magnets are usually made from materials such as neodymium or ceramic, which have strong magnetic properties. The magnetic flux generated by these magnets flows through the chuck surface, creating a powerful attractive force.

To use a PMCC, the workpiece is placed on the chuck surface, and the magnetic field holds it firmly in place. Depending on the design, some PMCCs allow for easy on/off operation using a lever or a switch. This feature enables quick setup and removal of the workpiece.

PMCCs find applications in various machining processes, such as milling, grinding, drilling, and turning. They are particularly useful when working with irregularly shaped or thin workpieces that may be difficult to hold using traditional clamping methods.

It's worth noting that while PMCCs are highly efficient for most ferrous workpieces, they are not suitable for non-ferrous materials such as aluminum or brass, as these materials are not attracted to magnetic fields. In such cases, alternative clamping methods like vacuum chucks or mechanical clamps are used.

Overall, PMCCs provide a reliable and efficient solution for securely holding ferrous workpieces during machining operations, offering convenience, stability, and ease of use.

When working with a PMCC Permanent Magnetic Chuck, it is important to follow specific safety precautions to ensure personal safety and prevent damage to the chuck and workpiece. Here are some general safety guidelines for working with a PMCC:
1.Read the user manual: Familiarize yourself with the specific instructions and guidelines provided by the manufacturer for the PMCC model you are using. The manual will contain important safety information specific to that particular chuck.
2.Proper installation: Ensure that the PMCC is securely and correctly installed on the machine or work surface. Follow the manufacturer's instructions for installation, alignment, and tightening of the chuck.
3.Inspect the chuck: Before each use, inspect the PMCC for any damage, cracks, or defects. Do not use a chuck that appears to be damaged, as it may compromise safety and performance.
4.Adequate workspace: Ensure that the work area is clean, well-lit, and free from obstructions. Maintain a clear and organized workspace to prevent accidents and ensure proper functioning of the chuck.
5.Adequate training: Only trained and authorized personnel should operate the PMCC. Make sure that operators are knowledgeable about the chuck's safe operation, handling, and maintenance procedures.
6.Personal protective equipment (PPE): Always wear appropriate PPE, such as safety glasses, gloves, and a face shield when operating or working near the PMCC. Additional protective equipment may be necessary depending on the specific application and associated hazards.
7.Magnetic field awareness: PMCCs generate strong magnetic fields. Take precautions to prevent the chuck from coming into contact with sensitive equipment, electronic devices, credit cards, or pacemakers. Keep these items at a safe distance from the chuck to avoid magnetic interference or damage.
8.Secure workpiece properly: Ensure that the workpiece is securely attached to the chuck and properly supported to prevent it from shifting or falling during operation. Use suitable clamps or fixtures when necessary.
9.Power supply precautions: When connecting or disconnecting the PMCC to a power source, make sure the machine is turned off and unplugged to prevent accidental activation of the chuck.
10.Regular maintenance: Follow the manufacturer's recommendations for routine maintenance, such as cleaning, lubrication, and inspection of the chuck. Regular maintenance helps ensure the chuck's optimal performance and extends its lifespan.

Remember, these guidelines provide general safety precautions, and it is crucial to consult the specific instructions and recommendations provided by the manufacturer of your PMCC for the most accurate and detailed safety information.
