Injection Molding Machine Rapid Die Change Manufacturers

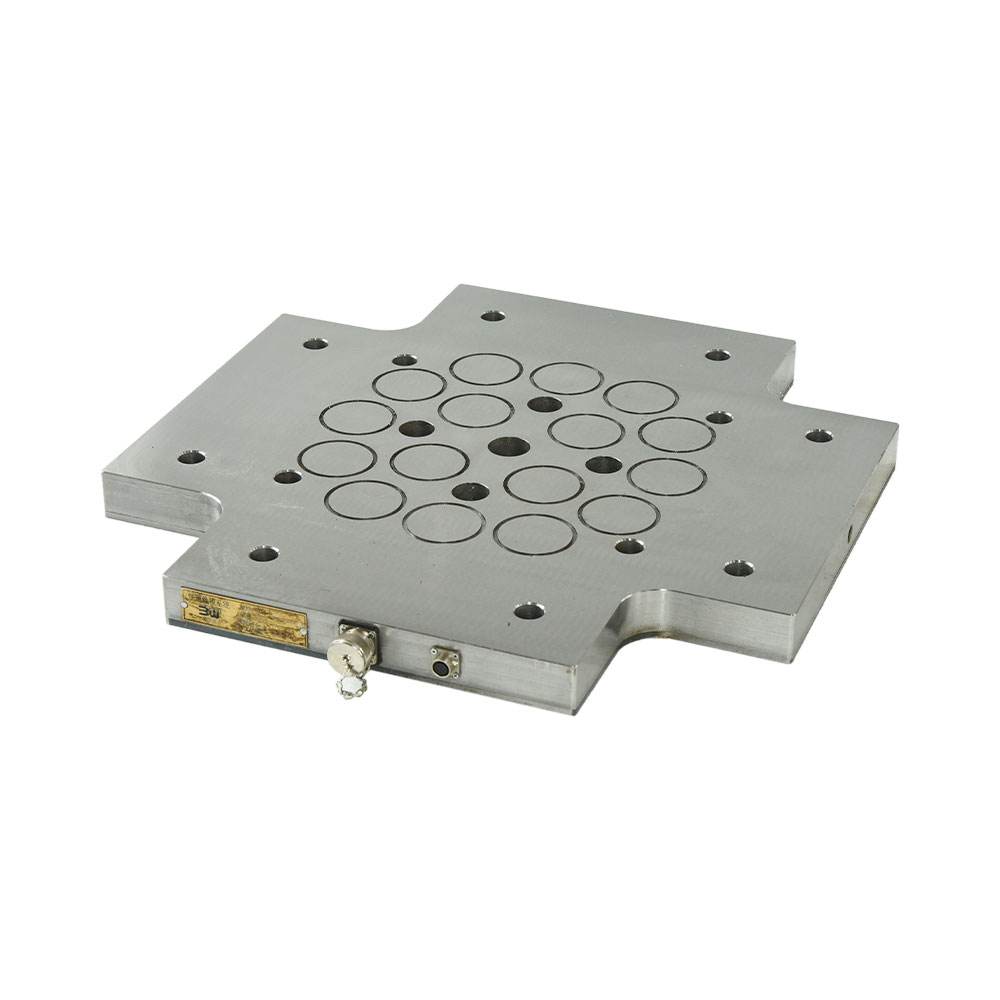

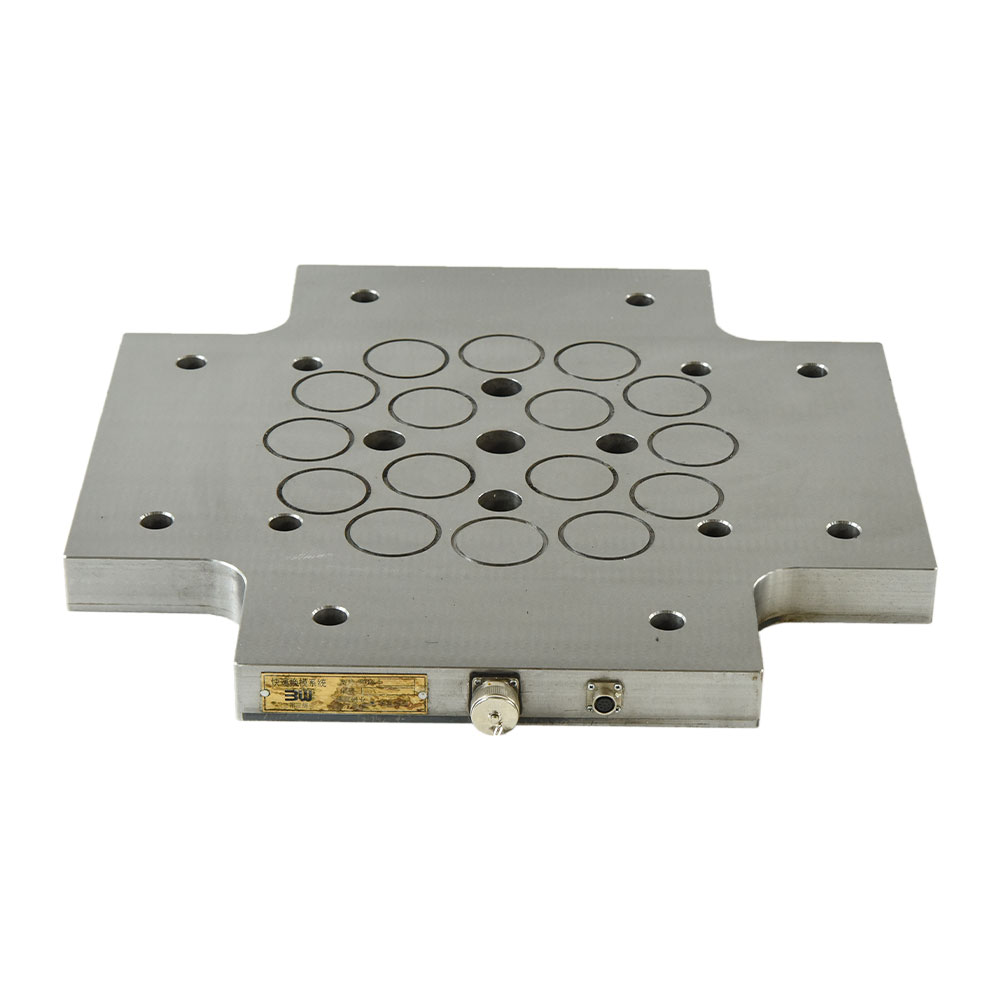

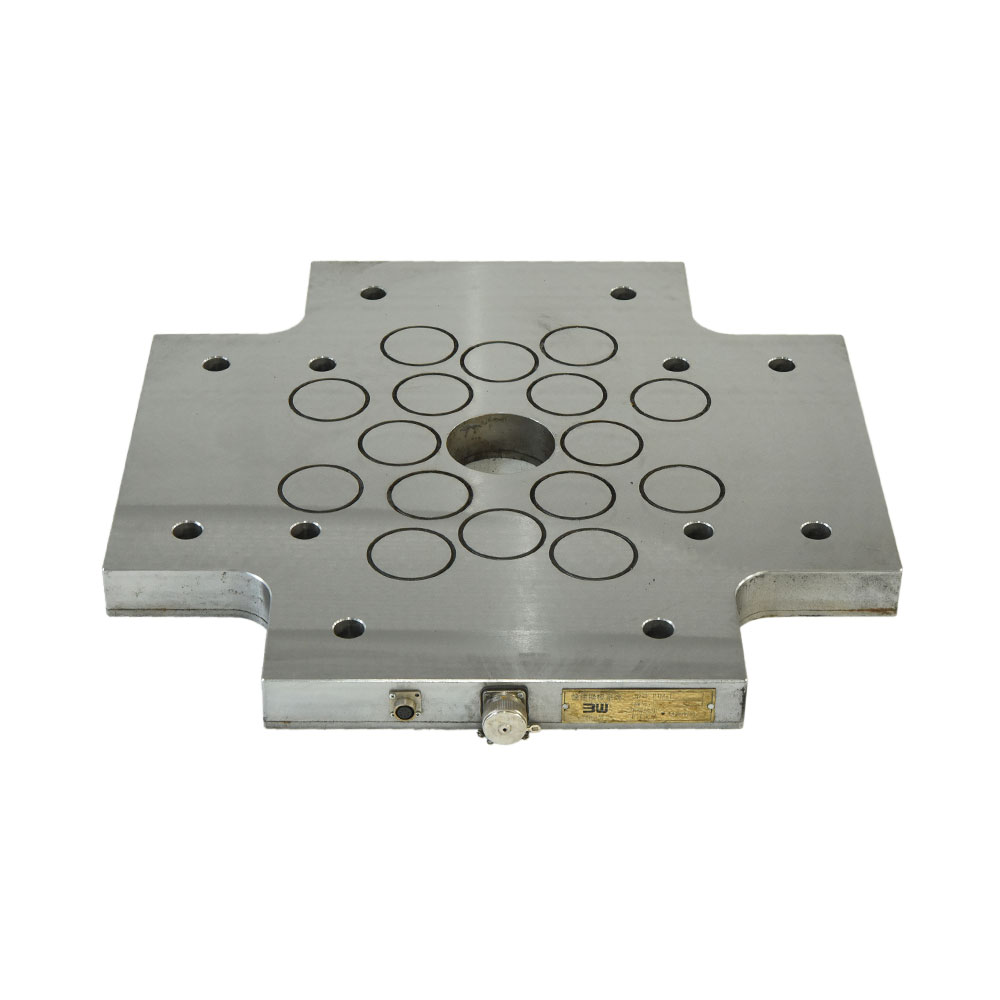

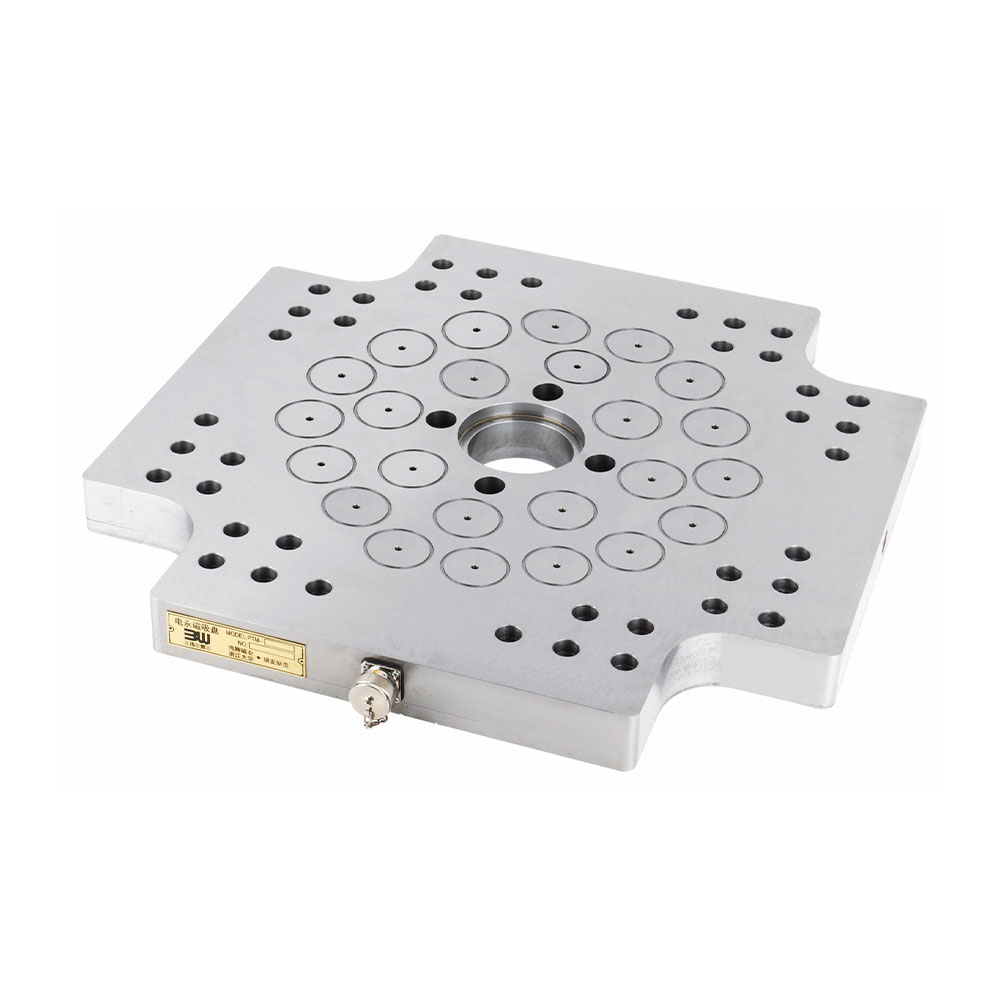

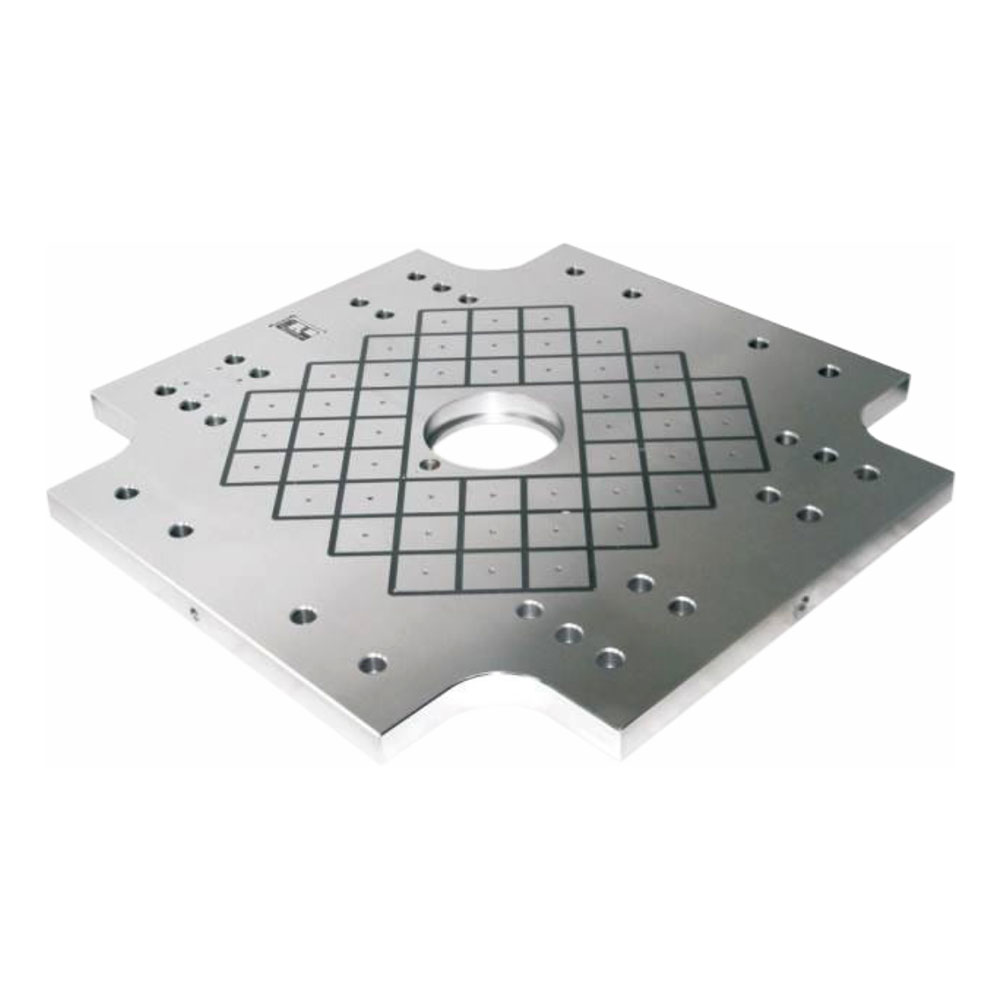

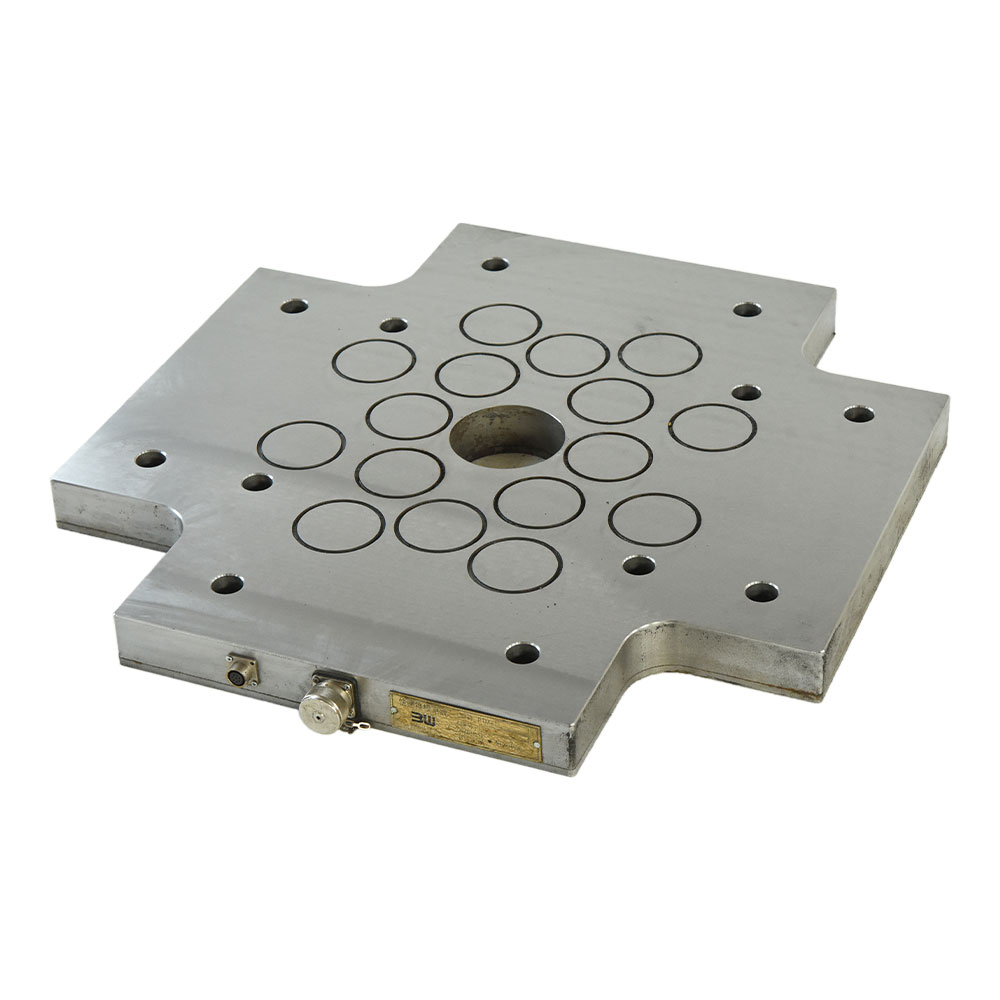

Quick mould change on injection moulding machines is a technology that allows for the rapid change of injection moulds, usually using a mould clamping system and a mould plate alignment device, making the mould change process easier, faster and more reliable. This technology reduces downtime in production and increases productivity and throughput compared to traditional injection moulding machines that require manual disassembly and reassembly for mould changes. In addition, PTM injection moulding machine quick mould change technology can also reduce the labour and operational risks involved in changing moulds, improving workplace safety and the working environment.
About Us

Ningbo WeiHui Magnetic Industry Co.,Ltd.

Ningbo WeiHui Magnetic Industry Co., Ltd is China Injection Molding Machine Rapid Die Change Manufacturers and Injection Molding Machine Rapid Die Change factory. Company has always been to technological innovation as the guide, with many domestic famous universities and technicacooperation and talent cultivation, after many years of hard work has formed a kind of enterprise culture of "pragmatic and realistic, the pursuit of perfect, now has a strong technical force, excellent management team. Company alway., adhere to market-oriented, with "science and technology, quality refinement, the good faith is gold" is the management idea, "first-class enterprise.High quality products, reasonable price" is our promise.
YASSION

Honor

  • Partners
  • Corporate Technology Breakthrough Award
  • Advanced Member Unit
  • Advanced enterprises
  • Certificate of merit
  • Ningbo Mould Industry Association
  • Technology-based Micro and Small Incubatees
  • Quality management system certificate
  • Certificate
  • Utility model patent certificate
  • Invention patent certificate

Leave a message

News

Read Our Journal

Industry Knowledge Development

Rapid die change (RDC) is a technique used in injection molding to minimize downtime during the process of changing molds or dies in an injection molding machine. It involves optimizing the setup and handling procedures to reduce the time required for mold changes, thereby improving productivity and efficiency.

Here are some common practices and considerations for PTSM Injection molding machine rapid die change:
Standardized Mold Components: Use standardized mold components and design practices that facilitate quick and easy mold changes. This includes employing common mold base sizes, standard parting line heights, and consistent fastener locations.
Quick-Release Fasteners: Implement fastening mechanisms such as quick-release clamps, latch systems, or hydraulic locking systems that allow for rapid and secure mold attachment and detachment. These mechanisms can significantly reduce the time required for mold changeovers.
Auxiliary Equipment Integration: Streamline the integration of auxiliary equipment, such as cooling systems, hot runners, or robotic automation, into the mold design. This reduces the need for additional adjustments during mold changes and expedites the setup process.
Quick Mold Alignment Systems: Utilize alignment aids like locating rings, dowel pins, and guiding systems that facilitate accurate and swift alignment of the mold halves. Proper alignment ensures consistent part quality and reduces setup time.
Mold Preheating: Consider implementing a preheating system for molds. Preheating the replacement mold before installation can minimize thermal shocks and accelerate the stabilization of the process, reducing the time needed for the mold to reach optimal operating temperature.
Tool Carts or Shuttle Systems: Implement tool carts or shuttle systems to transport molds between storage and the injection molding machine. This allows for efficient organization and movement of molds, reducing the time required for mold changeovers.
Operator Training: Provide comprehensive training to operators on mold change procedures and safety measures. Well-trained personnel can perform mold changes more effectively, minimizing the risk of errors or accidents and improving overall efficiency.
Standardized Procedures: Establish standardized procedures for mold changes, including checklists and documentation, to ensure consistency and minimize the chance of errors. This helps operators perform the changeovers more quickly and accurately.

By implementing these practices and optimizing the injection molding process, you can significantly reduce the time required for mold changes, increase machine uptime, and enhance overall productivity.

PTSM (Plastic Tooling and System Management) refers to a methodology for efficiently managing the tooling and changeover processes in injection molding machines. Rapid die change is an important aspect of PTSM, which involves minimizing the time and effort required to switch between different molds or dies in an injection molding machine. This approach offers several benefits and finds applications in various industries. Here are some common applications of PTSM and rapid die change in injection molding:
1.Production Flexibility: Rapid die change enables manufacturers to quickly switch between different molds or dies, allowing for increased production flexibility. This capability is particularly valuable in industries where frequent product changes or customization is required. Manufacturers can efficiently produce different parts or product variations without significant downtime or disruption.
2.Reduced Downtime: Traditional die changeovers in injection molding machines can be time-consuming, resulting in significant production downtime. By implementing PTSM and rapid die change techniques, downtime can be substantially reduced. Quick and efficient mold changes minimize the unproductive time between production runs, resulting in increased machine utilization and productivity.
3.Batch Production: Injection molding machines equipped with rapid die change capabilities are well-suited for batch production scenarios. In industries where small to medium production runs are common, such as automotive, electronics, and consumer goods, the ability to swiftly change molds and set up new production runs is highly advantageous. It allows for efficient production of different parts or products in smaller quantities.
4.Just-in-Time Manufacturing: PTSM and rapid die change support the principles of just-in-time manufacturing, where production is closely aligned with demand. By reducing the setup time associated with die changes, manufacturers can better respond to market demands and minimize inventory requirements. This approach improves efficiency and reduces waste, as production can be more closely matched to actual customer orders.
5.Multi-Cavity Molding: Rapid die change is particularly beneficial for injection molding machines that employ multi-cavity molds. These molds have multiple cavities, allowing for the simultaneous production of several parts in each molding cycle. Quick die changeovers enable manufacturers to take full advantage of multi-cavity molds, maximizing production output and efficiency.

Overall, the applications of PTSM and rapid die change in injection molding machines offer increased production flexibility, reduced downtime, and improved efficiency. These techniques are valuable in industries that require frequent product changes, batch production, and just-in-time manufacturing practices.
